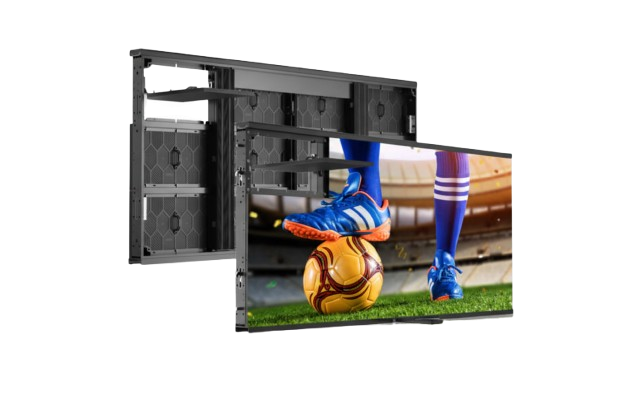

PROSPORT 6 OUT (boarding led)

The PROSPORT 6 OUT is a professional-grade 6.25mm pitch perimeter LED display engineered specifically for modern stadium environments. With a powerful brightness of 6000 nits, this boarding LED solution ensures maximum sponsor visibility even under direct sunlight. Designed with player safety as a priority, it features soft module masks and rubber top cushions to prevent injury during high-impact sports. This UEFA-compliant system offers a perfect balance of performance and protection, featuring an innovative emergency exit mechanism that allows the screen to be pushed aside for rapid stadium evacuation. Its ultra-slim 112mm profile and lightweight cabinet design make it one of the most efficient perimeter systems for logistics and rapid deployment in the sports industry.

State-of-the-Art Visual Performance and Reliability

At the core of the PROSPORT 6 OUT is a high-performance SMD (Surface Mounted Diode) architecture that delivers a class-leading 6000:1 contrast ratio. For international broadcasting, the refresh rate is a critical factor; this system boasts an ultra-high 7680Hz refresh rate, effectively eliminating scan lines and flickering on TV cameras, making it the ideal choice for live televised sporting events.

Redundancy and Engineering Excellence

Pixelight understands that failure is not an option during high-stakes matches. The PROSPORT series integrates N+1 power supply redundancy and dual receiving cards per cabinet. This "Zero Failure" philosophy ensures that if one component fails, the backup takes over instantly without signal loss. Unlike standard outdoor displays, these cabinets are IP65 rated both front and back, providing complete protection against rain, dust, and humidity. The 6.25mm pixel pitch provides a density of 25,600 pixels/m², striking the perfect balance between high-resolution clarity for close-up trackside viewing and energy efficiency for large-scale deployments.

Versatile Sports and Event Applications

While specifically engineered as a perimeter solution for football and rugby stadiums, the PROSPORT 6 OUT is a versatile asset for various high-traffic outdoor scenarios:

• Football & Rugby Perimeters: Fully compliant with UEFA and international sports federation requirements for pitch-side advertising.
• Multi-Sport Arenas: Ideal for basketball or handball courts where player impact protection and high-speed camera compatibility are required.
• Rental & Live Events: Thanks to the custom transport dollies and quick-lock system, the cabinets can be stacked or hung for temporary outdoor festivals.
• Crowd Control & Safety: The unique emergency push-open feature makes it a vital component in safety-conscious venue designs where the LED wall acts as a barrier that can be breached by security in milliseconds.

Technical Implementation and Maintenance

To maximize the lifespan and performance of your PROSPORT 6 OUT system, our engineering team recommends the following:

• Optimal Viewing Distance: With a 6.25mm pitch, the minimum viewing distance for a seamless image is approximately 6 meters, perfectly suited for the distance between the grandstands and the pitch perimeter.
• Controller Configuration: Utilize premium Novastar or Colorlight processors to leverage the 7680Hz refresh rate. Ensure the brightness sensor is calibrated to adjust the 6000 nits output based on ambient light to save energy during evening matches.
• Power Management: Due to the N+1 redundancy, ensure your power distribution boards are rated for peak consumption during white-balance calibration.
• Maintenance: The modular design allows for rapid front and rear access. Periodically check the soft rubber masks for wear to maintain player safety standards.
