SPORTICA 6
Discounted price for professionals — Free B2B quote within 24h
Category: LED Screen Sport
Pitch : 6.67 mm
Product images
Description

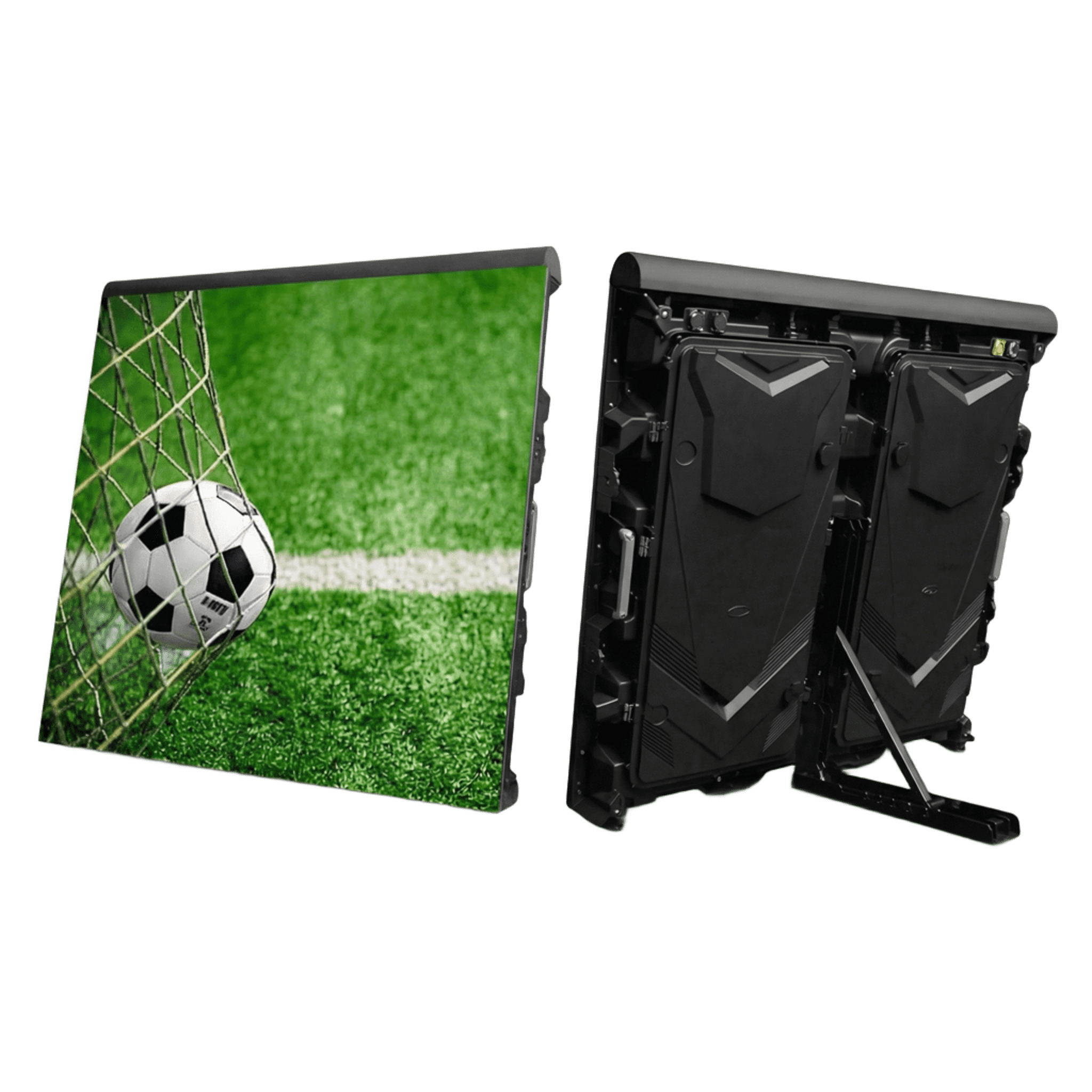

SPORTICA 6 — outdoor and indoor LED display
The Pixelight SPORTICA 6 is a outdoor and indoor LED panel with a 6,67 mm pixel pitch, 7,000 nits and IP65 protection, in a 960 x 960 mm cabinet. Its 7000-nit brightness and IP65 rating suit large stadiums and surfaces seen from a substantial standback.
The 6.67 mm pitch is the economic trade-off for very large surfaces: beyond seven metres of standback the eye no longer distinguishes it from a 5 mm pitch, while the cost per square metre drops noticeably. It is the pitch to propose as soon as the surface exceeds a hundred square metres.
Key specifications
Pixel pitch: 6,67 mm
Brightness: 7,000 nits
Ingress protection: IP65
Cabinet: 960 x 960 mm
Refresh rate: 3840 Hz
Application: Large stadiums and long-range outdoor surfaces
Technical Expertise
SPORTICA 6 — technical analysis
The SPORTICA 6 is a outdoor and indoor LED panel with a 6,67 mm pitch, 7 000 nits and IP65 protection, in a 960 x 960 mm cabinet. Its 7000-nit brightness and IP65 rating suit large stadiums and surfaces seen from a substantial standback.
The 6.67 mm pitch is the economic trade-off for very large surfaces: beyond seven metres of standback the eye no longer distinguishes it from a 5 mm pitch, while the cost per square metre drops noticeably. It is the pitch to propose as soon as the surface exceeds a hundred square metres.
To settle at project stage: the mounting structure and wind loading on outdoor installations, the latency of the video chain if the panel carries a live camera feed, and refresh alignment with the broadcast production where the venue is filmed. Comfortable viewing distance starts at 7 m.
Use Cases
- Large stadiums and arenas — big screens seen from the upper stands.
- Racecourses and circuits — large surfaces with a long standback.
- Advertising façades and gable ends — large-format urban display.
- Open-air events — stage screens and spectator zones.
- Car parks and retail parks — long-range signage and advertising.
Technical Tips
- Viewing distance — comfortable from 7 m; closer than that the pixel grid becomes visible.
- Brightness — 7000 nits ensure legibility in full sun; automatic regulation prevents glare at night.
- Ingress protection — IP65: rain and jet resistant, suitable for permanent outdoor installation.
- Broadcast capture — check refresh rate and camera shutter alignment before the first live feed.
- Maintenance — keep spare modules on site: a failure mid-season cannot wait for a resupply.
Technical Specifications
| Specification | Value |
|---|---|
| Pitch | 6.67 mm |
| Brightness | 7000 nits |
| Refresh Rate | 3840 Hz |
| Module Resolution | 48x24 |
| Module Size | 320x160 |
| Panel Resolution | 144x144 |
| Dimensions (W×H×D) | 960×960×120 mm |
| Panel Weight | 29 kg |
| IP Rating | IP65 |
| LED Type | SMD1921 |
| LED Lifespan | Env. 100 000 heures |
| Color Temperature | 6500k |
| Operating Temperature | -10°C-+50°C |
Frequently Asked Questions
À quelle distance peut-on regarder un écran LED pitch 6.67mm ?
La distance de lecture optimale pour un pitch de 6.67mm commence à environ 7 mètres pour une netteté parfaite. Elle permet un excellent compromis entre budget et confort visuel pour les grands espaces intérieurs.
Quels sont les avantages d'un écran LED intérieur ?
Un écran LED intérieur comme le LUMINARY PRO offre un contraste supérieur aux projecteurs et une luminosité adaptée aux environnements éclairés. Sa conception modulaire permet de créer des surfaces d'affichage sans bordures visibles.
Comment installer un écran LED géant LUMINARY PRO 6.67 ?
L'installation est facilitée par son système de maintenance totale par l'avant, permettant une pose directement en applique murale ou sur structure fine. Les modules aimantés assurent un alignement parfait et un accès rapide aux composants.
Quelle est la durée de vie d'un écran LED professionnel ?
Un écran LED professionnel PIXELIGHT est conçu pour fonctionner plus de 100 000 heures en usage continu. La qualité des composants de la série LUMINARY garantit une stabilité colorimétrique sur le long terme.
Quel prix pour un écran LED pitch 6.67mm ?
Le prix dépend de la surface totale en mètres carrés et de la complexité de l'intégration. Contactez PIXELIGHT pour un devis personnalisé incluant l'étude technique, la fourniture et l'installation de votre solution d'affichage.
