MEDIACITY 4H - P2.9 - Mobilier urbain - Sucette Vidéo LED pour Publicité et Communication

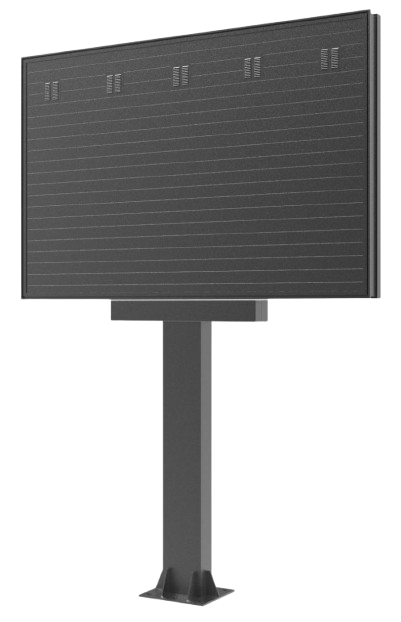

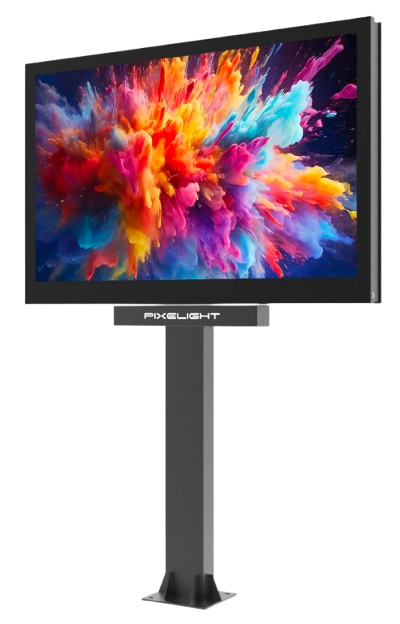

The MEDIACITY 4H - P2.9 is a turn-key outdoor LED video totem built to turn public space into an immersive visual experience. Its generous panoramic format and ultra-fine 2.9 mm pitch deliver exceptional pixel density for an outdoor screen, with perfect legibility from three metres away. At 5000 nits with automatic adjustment and a 3840 Hz broadcast refresh rate, advertising and municipal messages stay vibrant and flicker-free even under a midday sun. The patented aluminium housing is fully IP65 rated, with forced air circulation, a front air curtain, fans that adapt from -30°C to +60°C, and a 6 mm tempered glass face for clarity and vandal resistance. Novastar TB Series control handles campaigns remotely over Wi-Fi or 4G, dual-sided front-opening maintenance gives direct access to the modules and MeanWell LRS power supplies, and an eco timer schedules switch-on and switch-off hours. Overall size 2700 (W) x 3770 (H) x 190 (T) mm, for roughly 4 m² of LED display.

State-of-the-Art LED Engineering

As technical leaders in the LED industry, Pixelight integrates only high-tier components into the MEDIACITY 4V. The SMD 1415 technology used in this 2.9mm pitch display offers a superior contrast ratio and ultra-wide 160° viewing angles, ensuring your content looks perfect from every vantage point.

Advanced Processing & Refresh Rates

Equipped with a 3840Hz refresh rate, the MEDIACITY 4V eliminates flickering and "scan lines," making it ideal for high-end retail zones where consumers often photograph or film displays with smartphones. High-frequency PWM (Pulse Width Modulation) ensures grayscale consistency even at lower brightness levels during nighttime operation.

Reliability and Thermal Management

• SMD Technology: Reliable Kinglight LEDs provide stable colorimetry and long-term performance compared to lower-grade alternatives.
• Intelligent Cooling: Our patented "air curtain" system prevents heat buildup behind the 250x250mm modules, significantly extending the lifespan of the internal components.
• Novastar Ecosystem: Integrated TB Series controllers allow for real-time monitoring, automated brightness adjustment via light sensors, and centralized Cloud management.

• Auditoriums & salles de conférence
• Retail & galeries commerciales
• Événementiel & studios XR

Technical Optimization & Maintenance

To maximize the ROI of your MEDIACITY 4V, consider these professional recommendations:

• Optimal Viewing Distance: With a 2.9mm pitch, the minimum viewing distance is approximately 3 meters, making it perfect for pedestrian walkways and slow-traffic urban junctions.
• Power Management: Utilize the built-in programmable timers and Novastar’s brightness scheduling to reduce power consumption during off-peak hours, extending the MeanWell power supply life.
• Maintenance Access: This model features dual frontal maintenance. The chassis opens from both sides, allowing technicians to swap modules or service receiving cards without dismounting the entire structure.
• Controller Configuration: Ensure your 4G or Wi-Fi signal is robust for Cloud updates. Pixelight pre-configures your Novastar ViPlex Express or VNNOX accounts for plug-and-play deployment.
