MEDIACITY 3 Custom - P3.9 - Mobilier urbain avec système d'interphonie

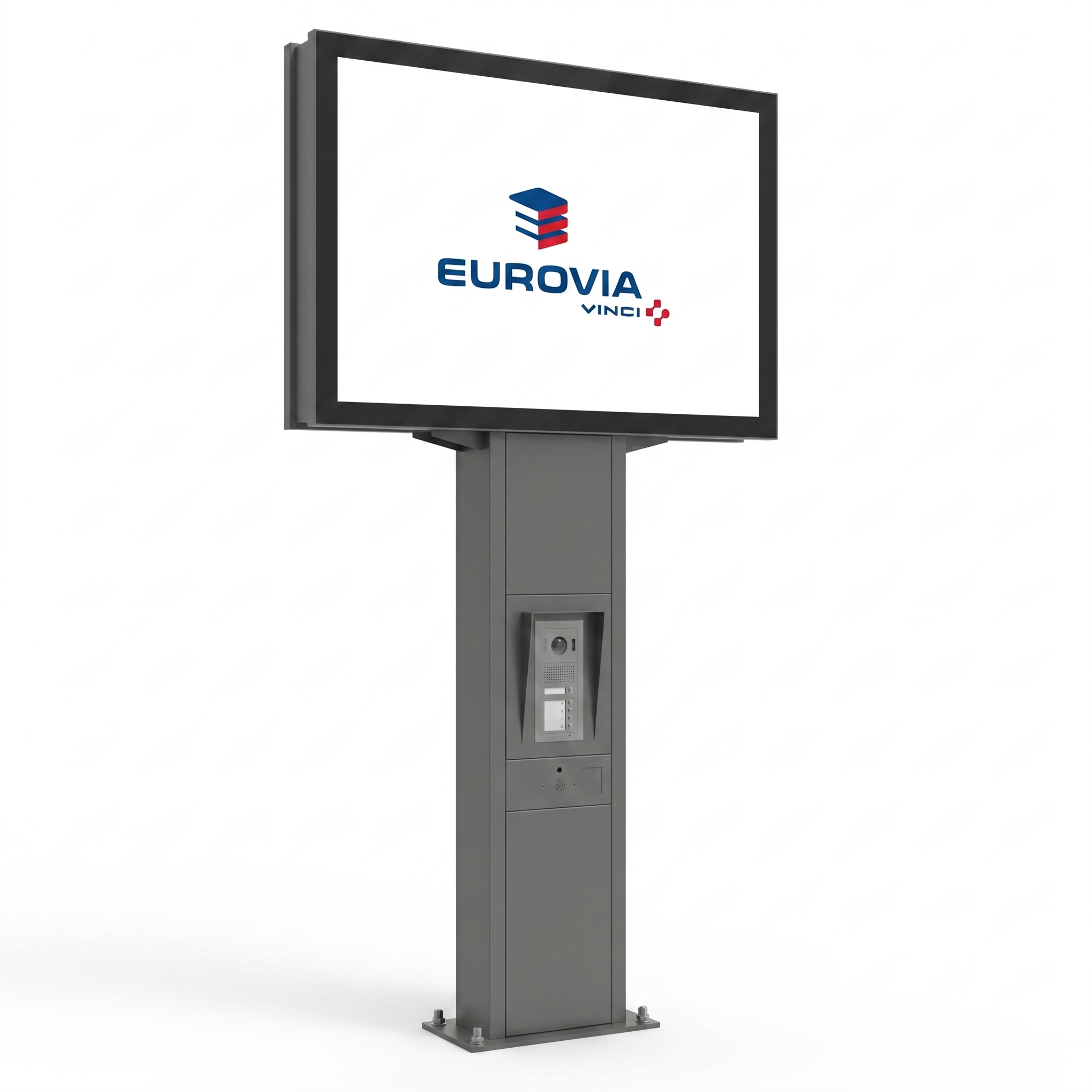

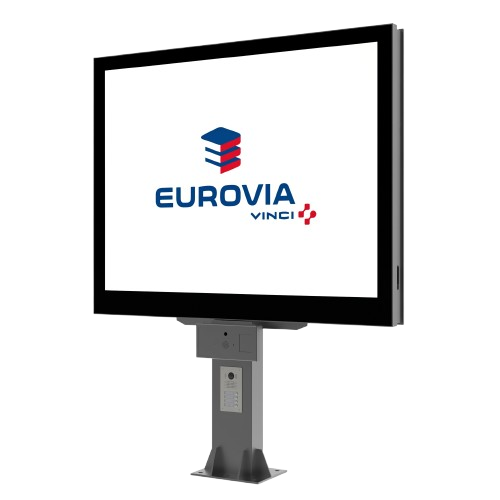

The MEDIACITY 3 Custom - P3.9 redefines urban display by combining exceptional visual power with secure interactivity. This high-performance LED totem carries a built-in intercom system, making it the natural choice for smart cities, modern car parks and public reception areas. Far more than an advertising screen, it is a genuine interactive contact point: a generous 2000 x 1500 mm display with a 3.9 mm pitch delivers remarkable clarity for municipal information, safety alerts or high-impact campaigns. Brightness of 5500 cd/m² keeps content legible under the harshest sun, and the refresh rate reaches 3840 Hz for perfectly smooth video driven by a NovaStar TB10Plus sending card. The anti-corrosion extruded aluminium chassis is certified IP65 and protected by 6 mm anti-glare tempered glass, with self-regulating fans, lightning protection, an earth-leakage breaker and CE conformity. A dedicated column houses the loudspeaker, call button and two microphones for clear two-way communication, and an hour timer automates switch-on and switch-off. Outer dimensions 2200 (W) x 2770 (H) x 190 (T) mm, mast height 1000 mm, and dimensions can be customised on request.

State-of-the-Art LED Engineering and Reliability

At Pixelight, we prioritize technical excellence to ensure long-term ROI for our clients. The MEDIACITY 4H utilizes high-quality SMD (Surface Mounted Device) technology, optimized for outdoor environments to provide a wide horizontal and vertical viewing angle. This ensures color consistency for pedestrians and drivers alike, regardless of their position relative to the screen.

High Refresh Rate and Visual Integrity

Equipped with a refresh rate of up to 3840Hz, this LED totem eliminates flickering and scan lines, making it perfect for high-definition video playback and broadcast-quality photography capture. Powered by NovaStar Taurus Series (T-Series) multimedia players, the 4H supports cloud-based content management and synchronous/asynchronous display modes.

Advanced Thermal Management and Protection

• IP65 Ingress Protection: Fully sealed modules protect against dust and high-pressure water jets.
• Tempered Glass Shield: A 6mm protective layer prevents physical impact damage to the 250x250mm LED modules.
• Temperature Regulation: An intelligent airflow system allows operation from -30°C to +55°C, preventing heat build-up and extending the lifespan of the SMD components.
• Premium Components: We utilize Meanwell LRS series power supplies for stable voltage delivery and surge protection.

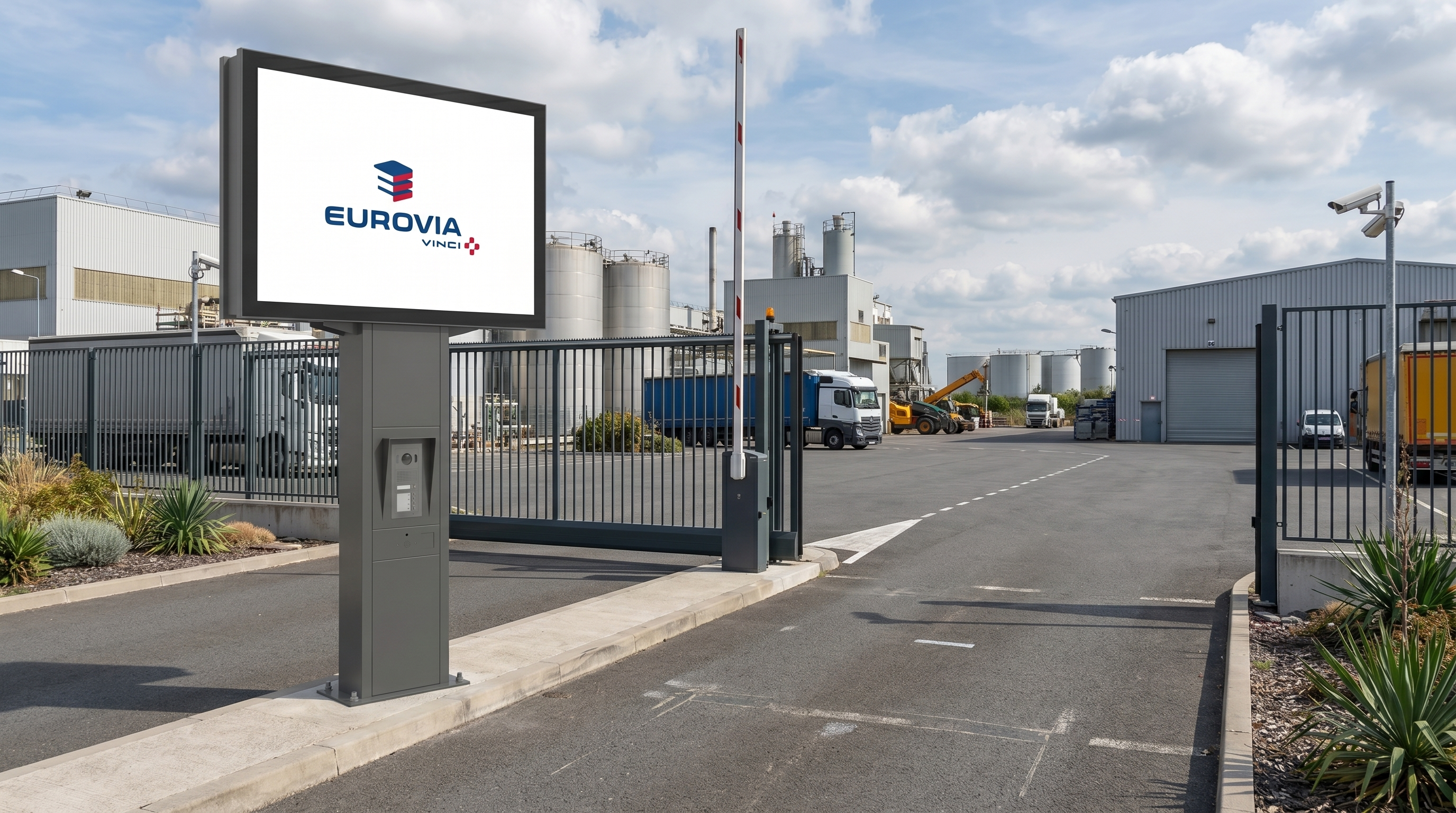

Versatile Urban Installation Scenarios

The MEDIACITY 4H is engineered for high-visibility outdoor environments where traditional static signage fails to engage. Its robust build and high-brightness output make it suitable for several key applications:

• Smart City Infrastructure: Displaying real-time public information, weather alerts, and transit schedules in metropolitan squares.
• Retail Excellence: Placed in shopping center courtyards or "Grand Boulevards" to drive foot traffic with high-contrast luxury brand advertisements.
• Transportation Hubs: Providing directional signage and commercial media at airport entrances or train station forecourts.
• Corporate and Event Centers: Serving as a digital concierge for convention centers, hospitals, or university campuses.
• Drive-Thru and Quick Service Restaurants: Utilizing the high nits and weatherproofing for durable digital menu boards and promotional displays.

Technical Optimization and Maintenance

To maximize the performance of your MEDIACITY 4H LED Totem, consider the following technical configurations:

• Optimal Viewing Distance: With a 3.9mm pitch, the minimum viewing distance is approximately 4 meters, making it ideal for sidewalk and storefront placements.
• Calibration and Brightness: Always enable the brightness sensor via the NovaStar software suite. This protects the LEDs from premature aging by reducing nits during evening hours and ensures compliance with local light pollution regulations.
• Power Requirements: Ensure a stable power feed with the integrated lightning protection and leakage switch. For large-scale deployments, verify circuit breaker capacity to handle peak inrush currents.
• Content Ratio: Design your creative assets at the native resolution of the 2500x1500mm display to avoid scaling artifacts and maintain a high contrast ratio.
• Preventative Maintenance: Inspect the air filtration vents every six months to ensure the cooling system operates at peak efficiency.
