H_2XHDMI2.0+2XDP1.2 CARD | Carte d'Entrée 4K Mixte (HDMI/DP) Novastar H | Quadruple

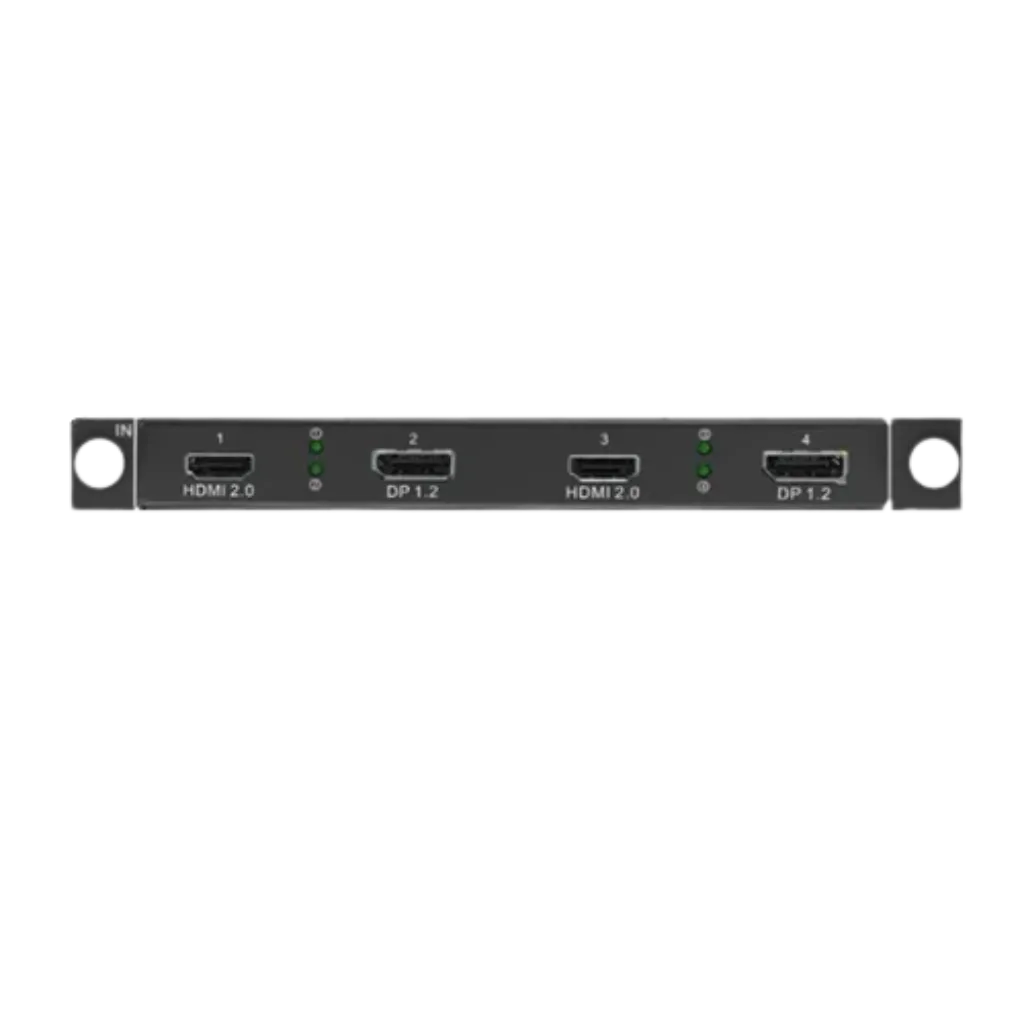

The Novastar H_2XHDMI2.0+2XDP1.2 Input Card is a high-performance quadruple input module designed specifically for the H Series Video Wall Processors. This mixed-interface card provides an uncompromising solution for professional environments requiring simultaneous access to diverse 4K sources. By integrating two HDMI 2.0 ports and two DisplayPort 1.2 ports, this card ensures full compatibility with both broadcast-grade video equipment and high-end computer workstations. It supports 4K UHD resolutions, delivering exceptional image clarity with the deep color depth and high contrast ratios required for modern LED displays. Whether managing complex visual data or high-definition cinematic content, this input card provides the robust hardware backbone necessary for seamless, ultra-low latency signal processing. Its hot-swappable design allows for rapid integration into any modular H series chassis, ensuring your LED display system remains scalable and easy to maintain.

Next-Gen Signal Processing for High-Resolution LED Arrays

As technical specialists at Pixelight, we recognize that the quality of an LED display is only as good as the signal chain driving it. The H_2XHDMI2.0+2XDP1.2 card is engineered to handle the massive bandwidth requirements of modern Fine Pixel Pitch LED walls. By utilizing high-speed HDMI 2.0 and DP 1.2 protocols, this card maintains the integrity of the refresh rate and color accuracy from source to screen.

Technical Reliability and Performance

• Hybrid Versatility: The combination of DP 1.2 and HDMI 2.0 allows for a mix of IT-based graphics and professional video signals without needing external converters, reducing potential points of failure.
• Sub-millisecond Latence: Critical for live broadcasting and synchronization, the H Series architecture ensures that even with 4K processing, the delay is virtually non-existent.
• High bit-depth Support: This card facilitates the transmission of HDR and high-bit-depth content, which is essential for maximizing the contrast ratio and grayscale performance of SMD and GOB LED modules.
• Modular Stability: The hot-swappable nature of the Novastar H series hardware allows for real-time upgrades or replacements without powering down the entire processing unit, a must-have for 24/7 mission-critical applications.

Versatile Applications for Professional LED Installations

The H_2XHDMI2.0+2XDP1.2 Input Card is the preferred choice for sophisticated environments where input variety is non-negotiable:

• Control Rooms & Command Centers: Simultaneously display high-resolution data from PC workstations (DP) and live camera feeds (HDMI) on a single large-scale LED video wall.
• Virtual Production & xR Studios: Essential for feeding high-frame-rate 4K content from media servers to GOB LED floors and backdrops with minimal latency.
• Broadcast Studios: Seamlessly switch between local PC graphics and incoming broadcast signals with professional-grade reliability.
• Corporate Boardrooms: Facilitate high-end presentations where users may connect diverse devices, ensuring a "plug-and-play" experience for 4K video conferencing and data visualization.
• Large-Scale Events: Use as the primary input hub for festivals and concerts, handling multiple 4K@60Hz feeds for high-brightness outdoor LED screens.

Technical Integration and Best Practices

To maximize the performance of your H Series Mixed Input Card, our engineering team recommends the following technical considerations:

• Cable Quality: Always use certified Premium High Speed HDMI 2.0 cables and DP 1.2 cables. Inferior cabling can lead to signal dropouts, flickering, or a reduction in the supported refresh rate (e.g., dropping from 60Hz to 30Hz).
• EDID Management: Utilize the Novastar H-Series software to customize EDID (Extended Display Identification Data) settings. This ensures your source output perfectly matches the native pixel-to-pixel resolution of your LED wall.
• Bandwidth Allocation: Be mindful of the total loading capacity of your H-Series chassis. While this card supports multiple 4K inputs, ensure your output cards are configured to handle the resultant pixel density.
• Maintenance: Thanks to the hot-swappable design, ensure the card is firmly seated and the locking mechanisms are engaged to prevent intermittent signal loss due to vibration.
