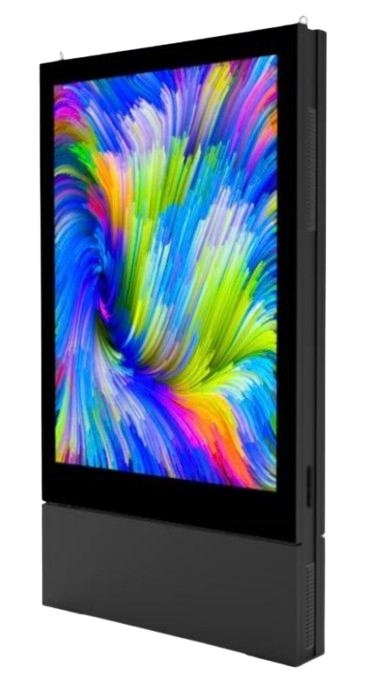

TOTEM LED Double Face- TL2,9DF

State-of-the-Art LED Engineering for Outdoor Reliability

High-Performance SMD Technology

The TL2.9DF utilizes advanced Copper-wire SMD (Surface Mounted Device) technology, optimized for high contrast ratios and wide viewing angles (140° Horizontal/Vertical). Unlike standard outdoor displays, the 2.97mm pitch provides a high pixel density of 336 x 504 pixels per face, allowing for high-definition video playback in a compact form factor.

Stability and Thermal Management

Maintaining color uniformity and longevity in an outdoor 6000-nit display requires elite thermal management. The TL2.9DF features a dual-ventilation system with optimized air channels. This prevents heat buildup behind the SMD diodes, protecting the solder joints and ensuring a stable refresh rate (up to 3840Hz) to eliminate flickering on camera. The IP56-rated housing (IP65 front-face module protection) ensures internal components remain dry and dust-free.

Intelligent Maintenance via Flash IC

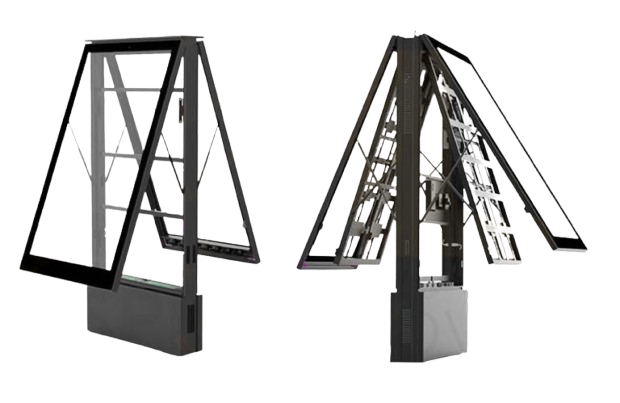

A key technical advantage of our Totems is the Integrated Flash IC on each module. This technology stores calibration data locally. When a module is replaced during front or rear maintenance, the NovaStar control system automatically synchronizes the calibration, ensuring perfect chromatic uniformity without the need for manual onsite recalibration.

Versatile Deployment Scenarios

The TOTEM LED TL2.9DF is engineered for versatility across various high-end outdoor sectors:

• Retail & Shopping Centers: Enhance storefront visibility and guide foot traffic with dual-sided promotional content that cuts through ambient sunlight.
• Transportation Hubs: Ideal for airports and train stations where real-time information and high-resolution advertising must be legible from both directions.
• Urban Wayfinding: Its robust aluminum build and IP56 protection make it perfect for city councils looking to implement interactive or static digital street furniture.
• Event Venues: Use as standalone digital posters for concert halls, stadiums, or exhibition centers to provide dynamic schedules and sponsor highlights.
• Corporate Campuses: Professional outdoor communication for large-scale headquarters, ensuring brand consistency with high-white-balance accuracy and deep black levels.

Professional Integration and Maintenance Advice

To maximize the lifespan and performance of your TL2.9DF Totem, our technical team recommends the following:

• Viewing Distance: The 2.97mm pitch is ideal for viewing distances starting at 3 meters. For optimal visual impact in busy walkways, ensure content is scaled to the native resolution of 336x504 pixels.
• Power Management: Given the 6000-nit capability, we recommend utilizing the NovaStar light sensor (compatible with the integrated system) to automatically dim the display at night, reducing power consumption and increasing LED longevity.
• Mechanical Security: For high-traffic urban areas, we advise the IK10-rated anti-vandalism tempered glass option (3mm+3mm) to protect the SMD surface from physical impact.
• Cooling: Ensure the 232mm chassis ventilation ports remain unobstructed. Clean the integrated dust filters every 6 to 12 months depending on the environment (urban vs. coastal).
