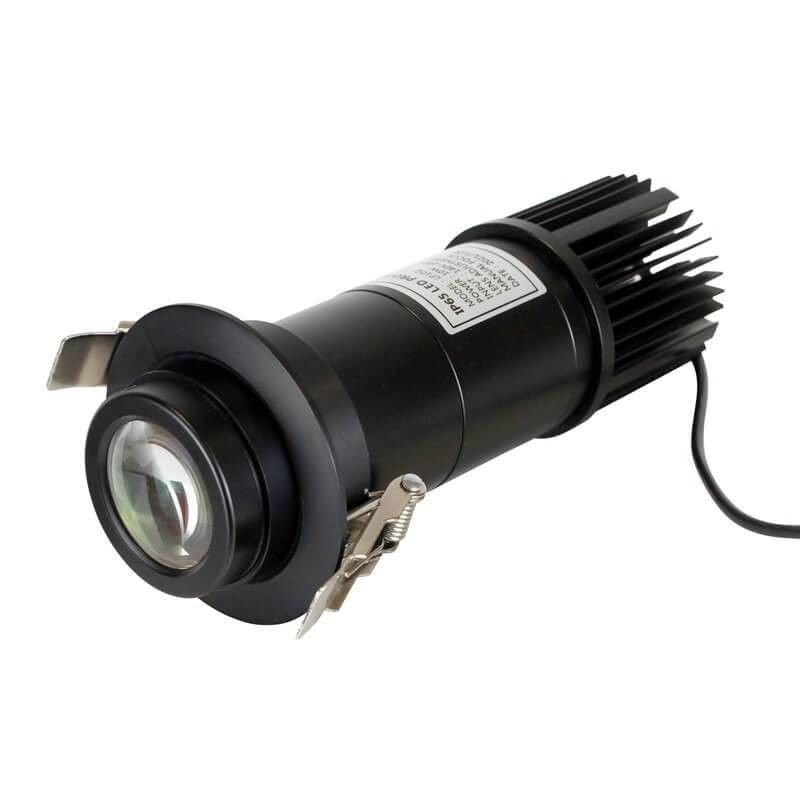

Projecteur GOBO LED 10W encastrable - Intérieur - IP40

10 W LED gobo logo projector - 20° optic - indoor - recessed - IP40

Technical specifications

• Power: 10 W

• Beam angle: 20°

• Ingress protection: IP40

• Use: Indoor

• Mounting: Recessed ceiling mount

• Voltage: 220-240 V

• MTBF: 25,000 h

Why choose a LED gobo projector

Project a logo, a message or a decorative pattern onto any surface with no heavy installation work. A silent, low-consumption alternative to painted or printed signage, suited to indoor use.

Typical applications

• Event and brand activation communication

• Storefront and retail brand identity

• Temporary wayfinding and safety signage

• Stage, architectural and hospitality lighting

FAQ

What throw distance can I expect? It depends on the 20° optic and the 10 W output - typically 2 to 8 m. Beyond that range, move up in wattage or choose a narrower beam angle.

Is a gobo supplied? One standard gobo is included. Custom gobos - your logo, a slogan, a seasonal pattern - are available as an option, in glass or metal.

Included in the delivery

• BLPE10I-F projector

• 1 standard gobo

• Mounting bracket and fixings

• Installation guide

• 2-year warranty

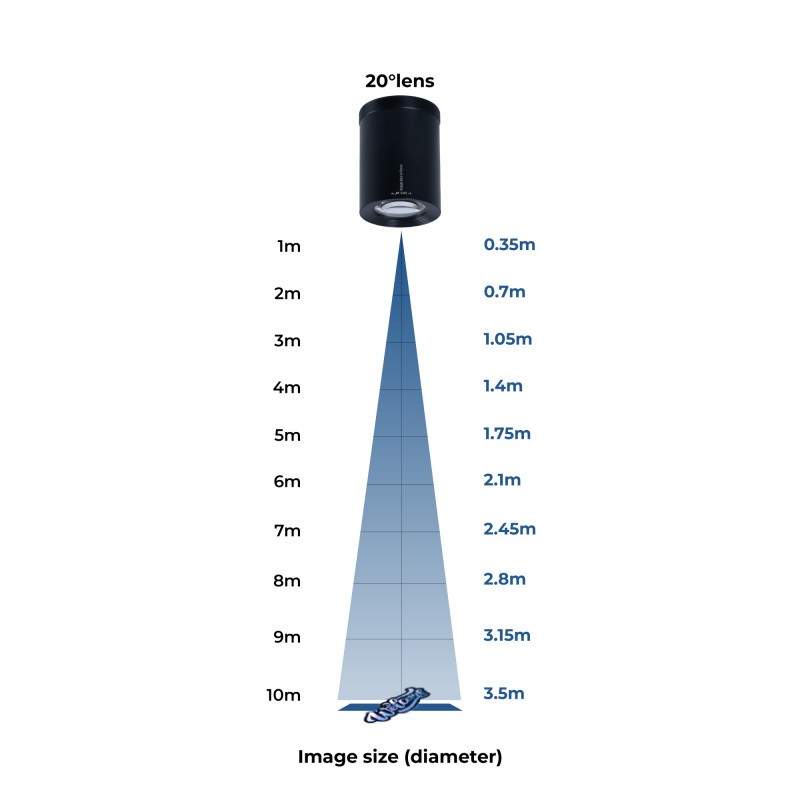

How big is the image at a given distance?

The projected image diameter depends only on the beam angle and the distance: D = 2 × d × tan(angle / 2). At 10 m, a 9° optic gives 1.57 m, a 20° optic 3.53 m and a 45° optic 8.28 m. The exact angle fitted to this 10 W reference is to be confirmed at order, based on the intended throw distance.

Recessed in the ceiling, the projector aims straight down: the throw distance is the ceiling height, which sets the floor logo diameter directly.

Choosing the wattage

This 10 W class is sized for short throws and moderate ambient light: a lit shop window, a counter, a wall corner. In direct sun or against street lighting it will wash out.

Image illuminance falls with the square of the distance: doubling the throw divides brightness by four. Conversely, holding the same image brightness while moving back requires power to rise with the square of the distance — going from 20 W to 40 W buys roughly 40% more throw, not twice as much.

Typical applications

• Projecting a logo or message onto any light surface, replacing a printed sign

• Signage that changes without building work: swap the gobo

• Seasonal lighting decor renewed without a new installation

• Indoor installation, IP40: shop window, technical ceiling, track, suspended ceiling

• Recessed into a suspended ceiling, for a discreet result where only the image is visible

In every case, readability depends first on contrast: a light, matt surface with little other light on it beats a higher wattage thrown onto a dark or glossy background.

Installation and operation

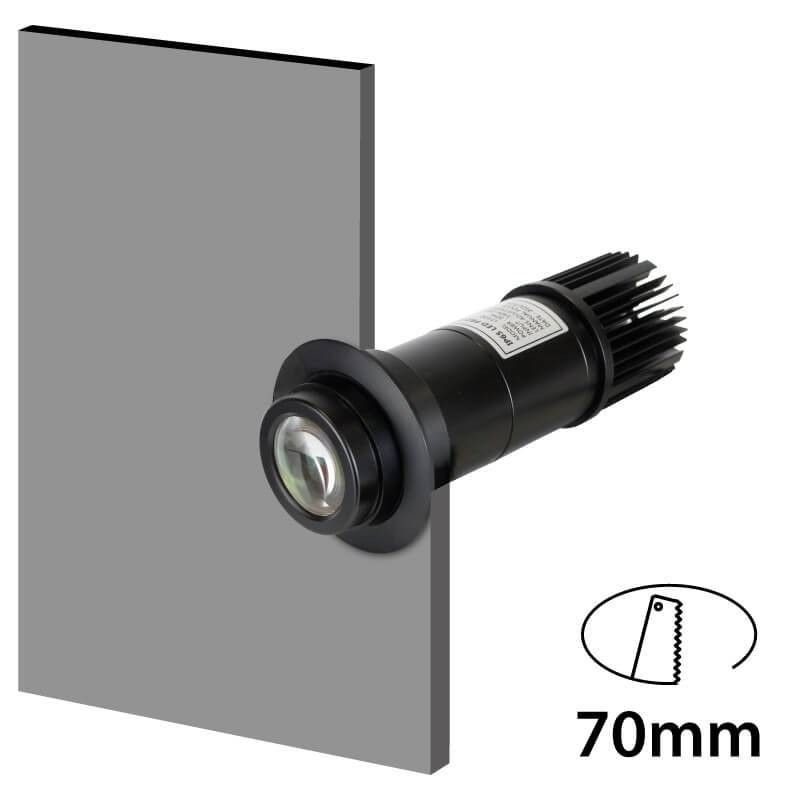

• Recessing requires a ceiling cut-out and clearance behind for heat dissipation; do not bury the body in insulation.

• Focus on the lens ring at the final throw distance: an image sharp at 3 m is no longer sharp at 8 m.

• One standard gobo is supplied. Custom gobos come in metal (cut motif, single colour, very durable) and glass (colours, gradients, photographic). Glass is essential as soon as more than one colour is involved.

• IP40 restricts the unit to indoor use, away from splashing water and salt spray.

• 220-240 V supply, stated MTBF 25,000 h. Switch it with the site lighting rather than running it permanently: useful LED life is extended accordingly.
