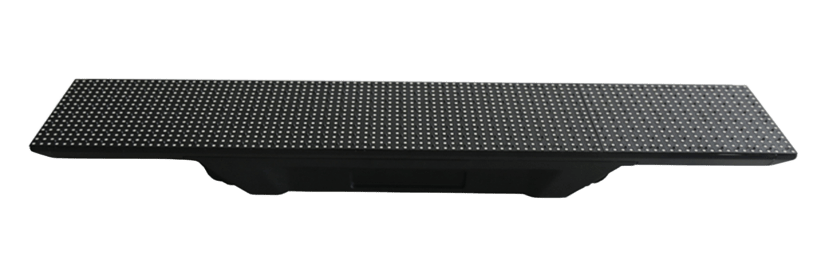

PIXELINE PRO 3

The PIXELINE PRO 3 from the PIXELINE series is a professional-grade indoor 3mm pixel pitch LED module designed for ultimate creative freedom. This high-precision rental solution breaks the limitations of standard square cabinets, allowing visual designers to build intricate structures, linear accents, and complex display volumes. With a brightness of 1200 nits and high-contrast SMD2020 LEDs, it ensures vivid imagery and deep black levels even in high-ambient light environments such as television studios or event halls.

Engineered for the demanding rental market, the PB3 combines robust mechanical construction with refined aesthetics. Its unique 300x100mm form factor is the perfect building block for elite stage designs and temporary luxury installations. By choosing Pixelight's PIXELINE PRO 3 series, you benefit from a versatile tool that bridges the gap between traditional video walls and architectural lighting, ensuring your visual content stands out with professional clarity and color accuracy.

State-of-the-Art LED Performance and Reliability

Advanced SMD Technology and High Refresh Rates

The PIXELINE PRO 3 utilizes premium SMD2020 LEDs, carefully selected for color uniformity and a wide 160° viewing angle. This ensures that your content remains consistent from every perspective, crucial for large-scale events and broadcast applications. A critical feature for professional use is the 3840Hz Refresh Rate. This high frequency eliminates scan lines and flickering on camera, making it the industry standard for TV sets and live streaming where visual integrity is non-negotiable.

Mechanical Precision and Versatility

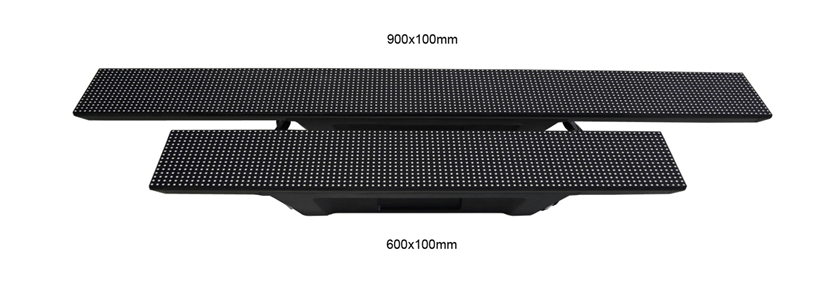

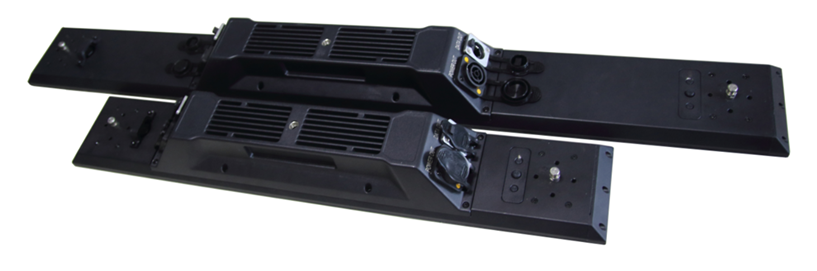

Unlike standard panels, the PB3’s 300x100mm module size allows for unprecedented design flexibility. Whether you are creating 90-degree edges, creative columns, or recessed lighting effects, the mechanical tolerances are kept to a minimum to ensure seamless gaps. While SMD (Surface Mounted Device) technology provides the best color rendering, we also offer guidance on GOB (Glue on Board) options for clients requiring extra protection against mechanical impact and dust in high-traffic rental environments. Our engineering team in France ensures every batch meets rigorous quality control standards for long-term reliability.

Versatile Applications for Visual Designers

The PIXELINE PRO 3 is the hardware of choice for scenarios where standard displays cannot perform. Its modular nature makes it ideal for:

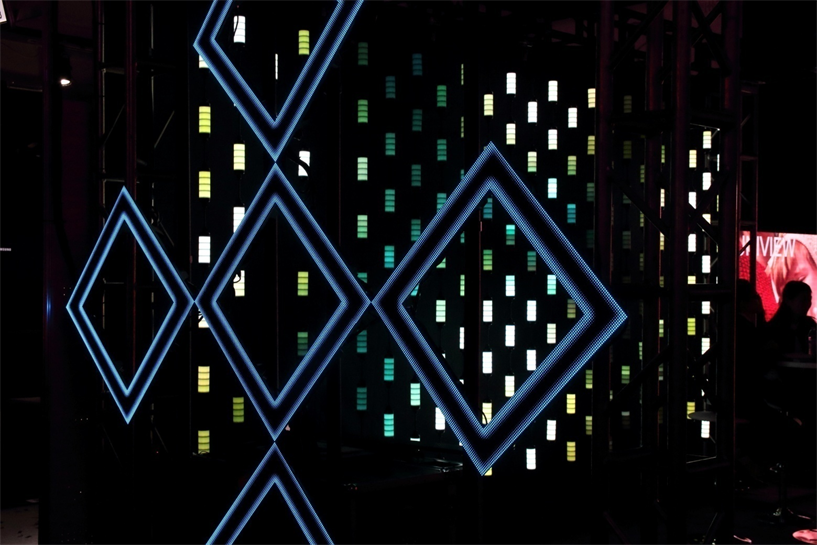

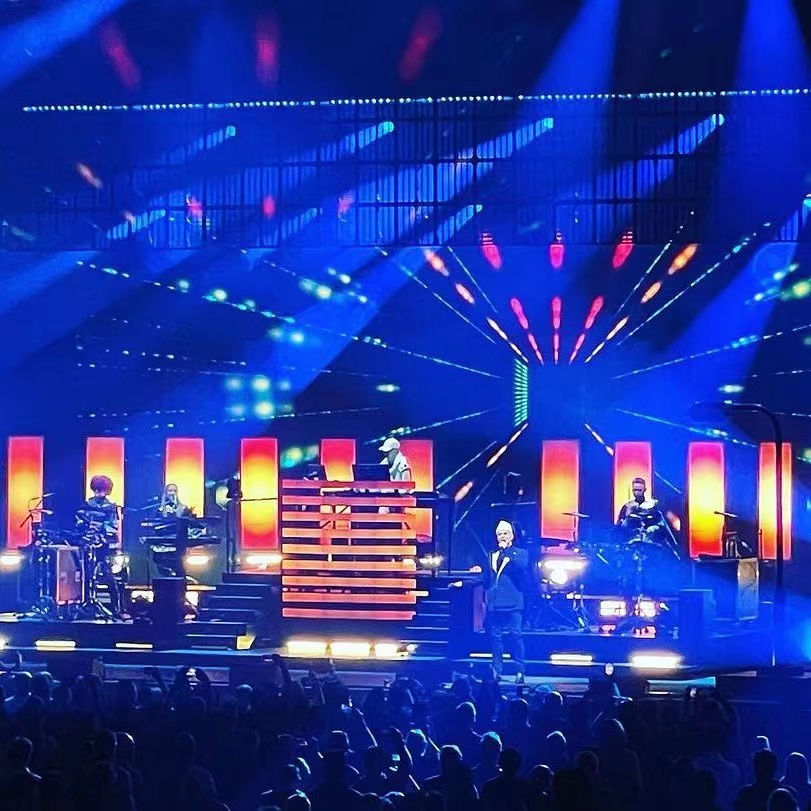

• Stage and Set Design: Create custom geometric shapes, borders, and light strips that sync perfectly with the main video wall content.
• Television Studios: Used as high-resolution backdrops or integrated into set furniture thanks to its 3840Hz refresh rate and low-profile design.
• Luxury Retail & Showrooms: High-end boutiques use the PB3 to integrate digital signage into architectural features, highlighting products with 1000 nits of vibrant brightness.

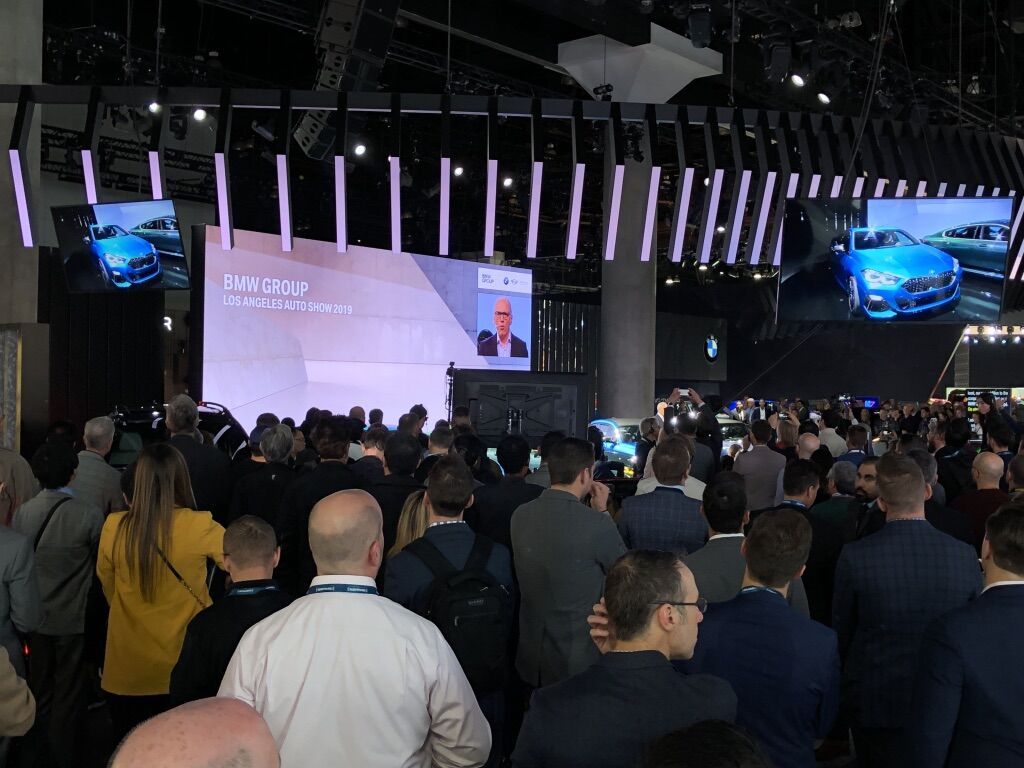

• Corporate Events: Ideal for prestigious brand launches and pop-up installations where a unique, non-rectangular display configuration is required to captivate the audience.

Technical Optimization and Maintenance

To maximize the lifespan and performance of your PIXELINE PRO 3 modules, we recommend the following technical practices:

• Optimal Viewing Distance: With a 3mm pitch, the ideal minimum viewing distance is approximately 3 meters. This ensures the human eye perceives a continuous image rather than individual pixels.
• Power Management: Ensure a stable power supply. For large installations, distribute the load across multiple circuits to prevent voltage drops that can affect brightness uniformity and 1000 nits performance.
• Controller Configuration: Use professional-grade sending boxes (like NovaStar or Brompton) to calibrate color coordinates and grayscale transitions. Setting the refresh rate correctly in the RCFG files is essential for flicker-free operation.
• Maintenance: Clean the SMD surface with a soft, anti-static brush. Avoid direct contact with liquids to protect the delicate LED bonds.
