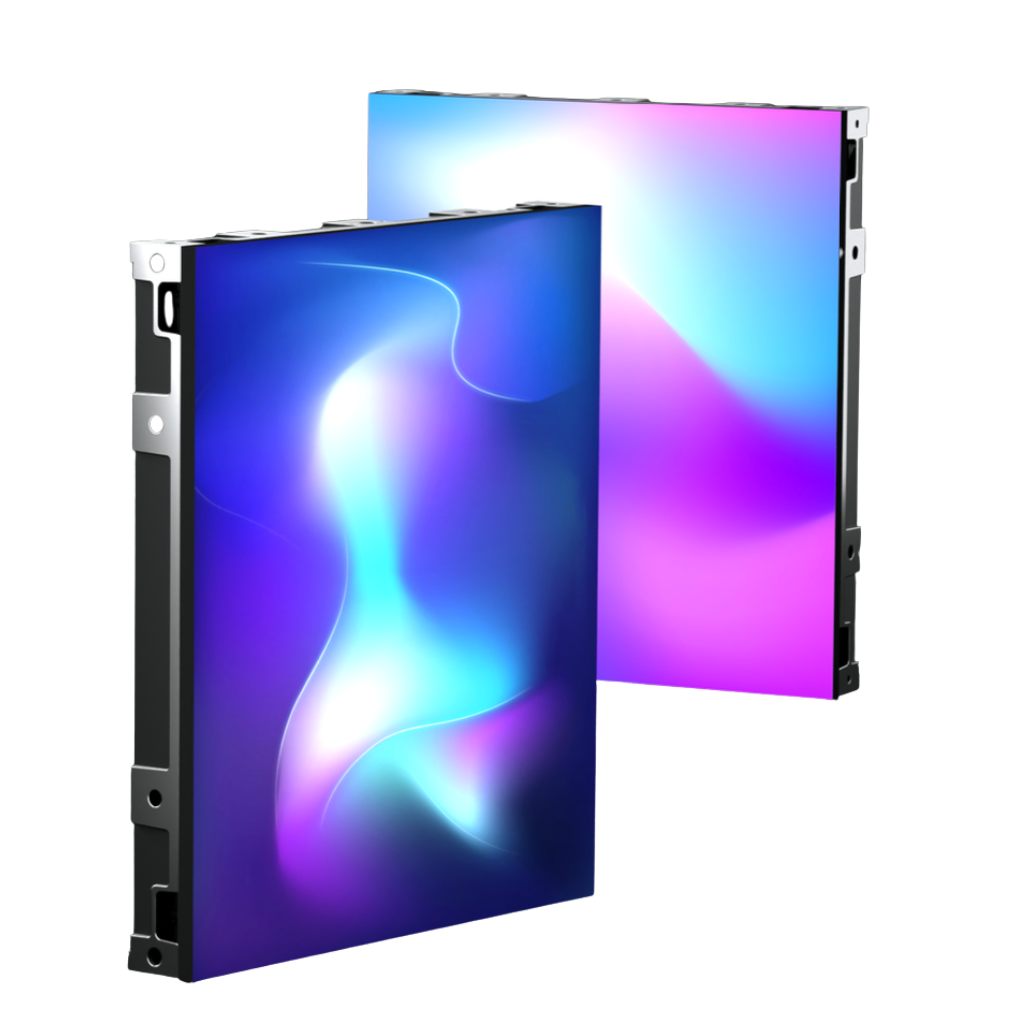

PANORAMA PRO OUT 1.2

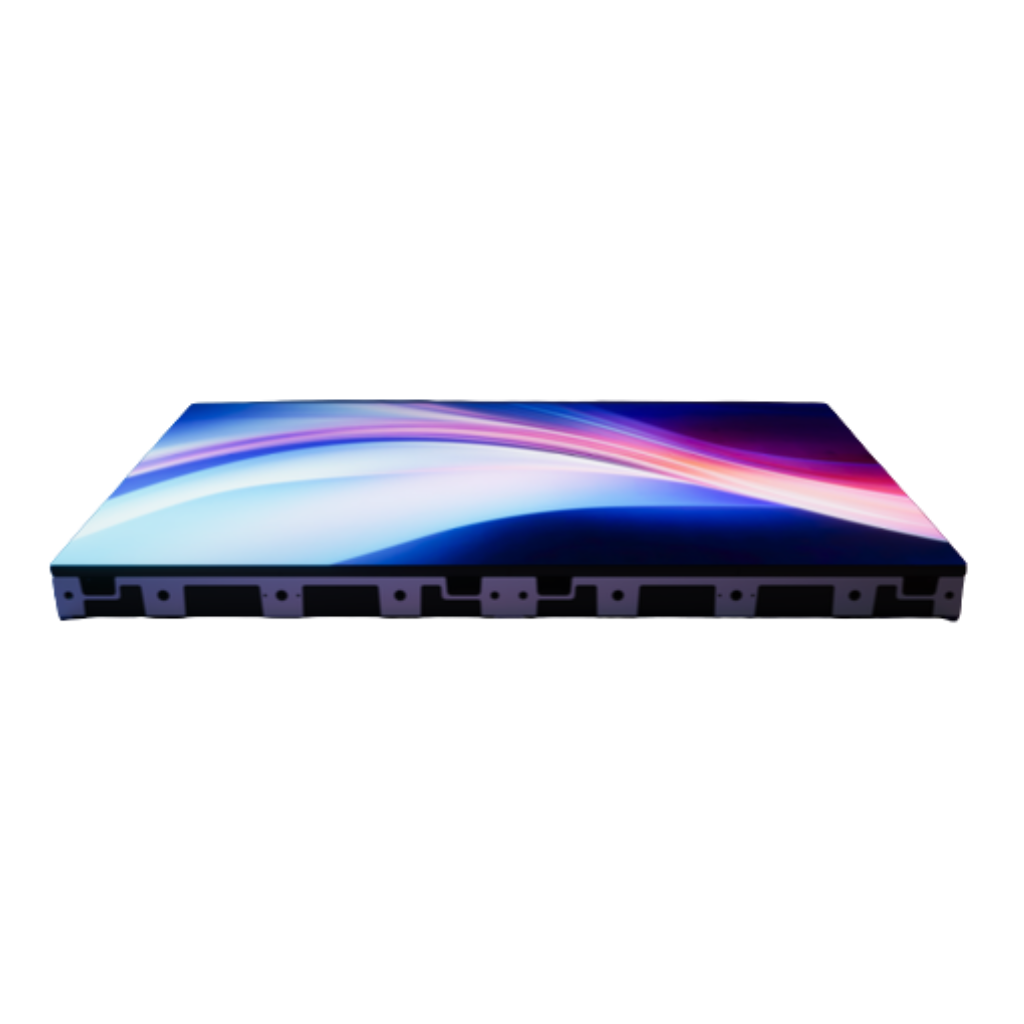

State-of-the-Art LED Engineering: X-GOB & Flip-Chip Technology

At the center of the PANORAMA PRO OUT 1.2 performance is the integration of X-GOB (Glue-on-Board) technology. Unlike traditional SMD LEDs, X-GOB provides a protective epoxy coating that shields the fine-pitch diodes from physical impact, moisture, and dust ingress, achieving an IP65 rating. This is critical for 1.25mm outdoor displays where diode fragility is typically a concern.

High Refresh Rate and Visual Consistency

Equipped with high-tier driver ICs, the PANORAMA PRO OUT 1.2 supports a refresh rate of up to 3840Hz. This eliminates flicker and ghosting, making it ideal for professional broadcast and high-speed motion content. The DCI-P3 color gamut coverage ensures deep saturation and a high contrast ratio, maintaining color fidelity even at the ultra-wide 160° horizontal and vertical viewing angles.

Advanced Thermal Management

The display utilizes Flip-chip LED architecture, which enhances electrical efficiency and reduces heat generation compared to wire-bonded LEDs. The die-cast aluminum frame acts as a massive heatsink, facilitating passive dissipation. This design not only extends the product's lifespan but also ensures stable brightness levels across the entire canvas without thermal throttling.

High-Impact Installation Scenarios

The PANORAMA PRO OUT 1.2 is engineered for environments where standard outdoor LED displays lack the necessary resolution. Key applications include:

• Luxury Retail Frontages: Perfect for high-end boutiques where brand imagery requires 4K precision at eye level.
• Corporate Headquarters: Ideal for outdoor lobby entrances or architectural landmarks requiring a "seamless digital skin" look.
• Transportation Hubs: Suitable for outdoor digital-out-of-home (DOOH) advertising in airports or train stations where passengers stand close to the screens.
• Smart City Kiosks: Its high brightness (4300 nits) and X-GOB protection make it the ultimate choice for interactive urban information points.
• Control Rooms & Command Centers: Often used in outdoor-facing security monitoring where high-density data and map visualization are paramount.

Technical Optimization and Installation Guidelines

To maximize the performance of your PANORAMA PRO OUT 1.2 installation, Pixelight technical experts recommend the following:

• Optimal Viewing Distance: With a 1.25mm pixel pitch, the minimum viewing distance (Retina point) is approximately 1.2 meters, making it perfect for pedestrian-level outdoor displays.
• Power Configuration: Utilize a stabilized power supply to protect the sensitive fine-pitch modules. Ensure the controller settings are calibrated for 14-bit or 16-bit grayscale to leverage the panel's full dynamic range.

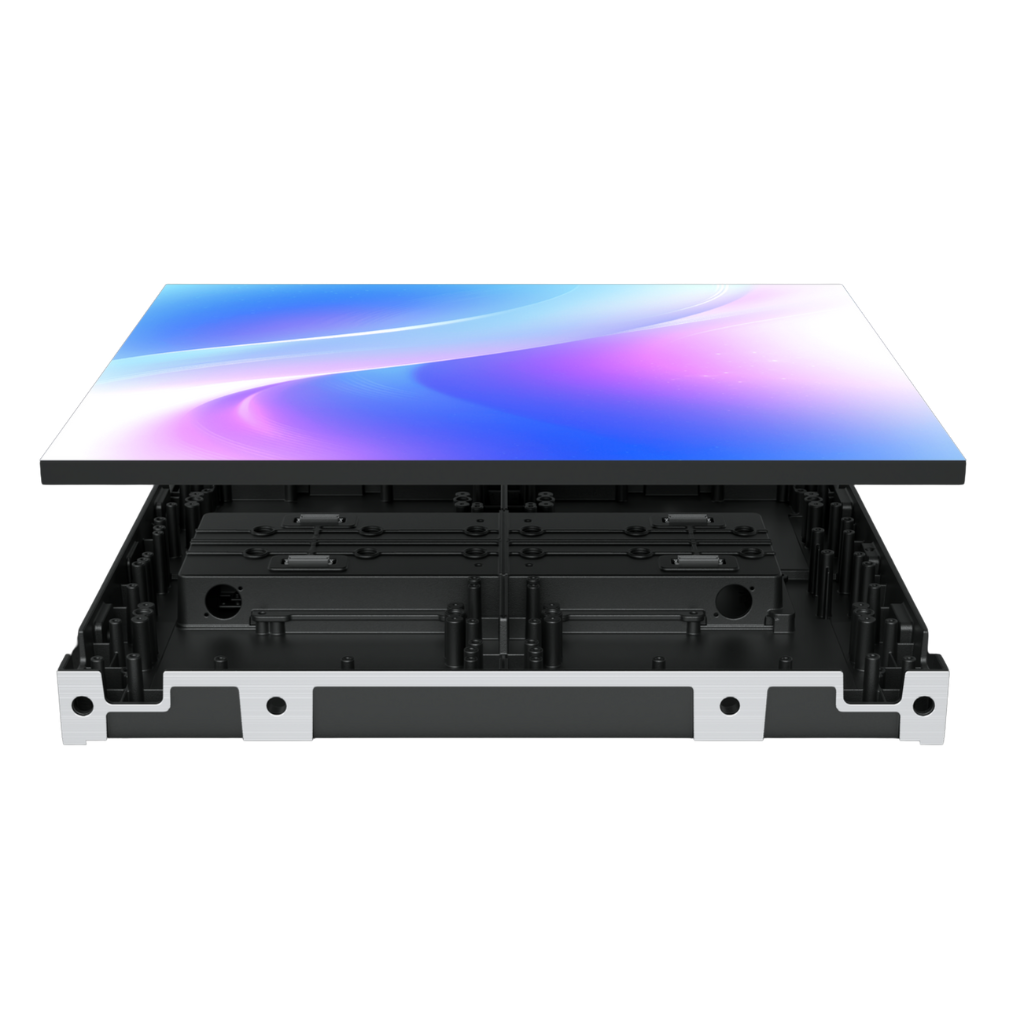

• Front Maintenance: Take advantage of the 100% front-serviceable design. The "S-latch" magnetic system requires a specific vacuum tool for module removal, preventing unauthorized tampering while simplifying onsite repairs.

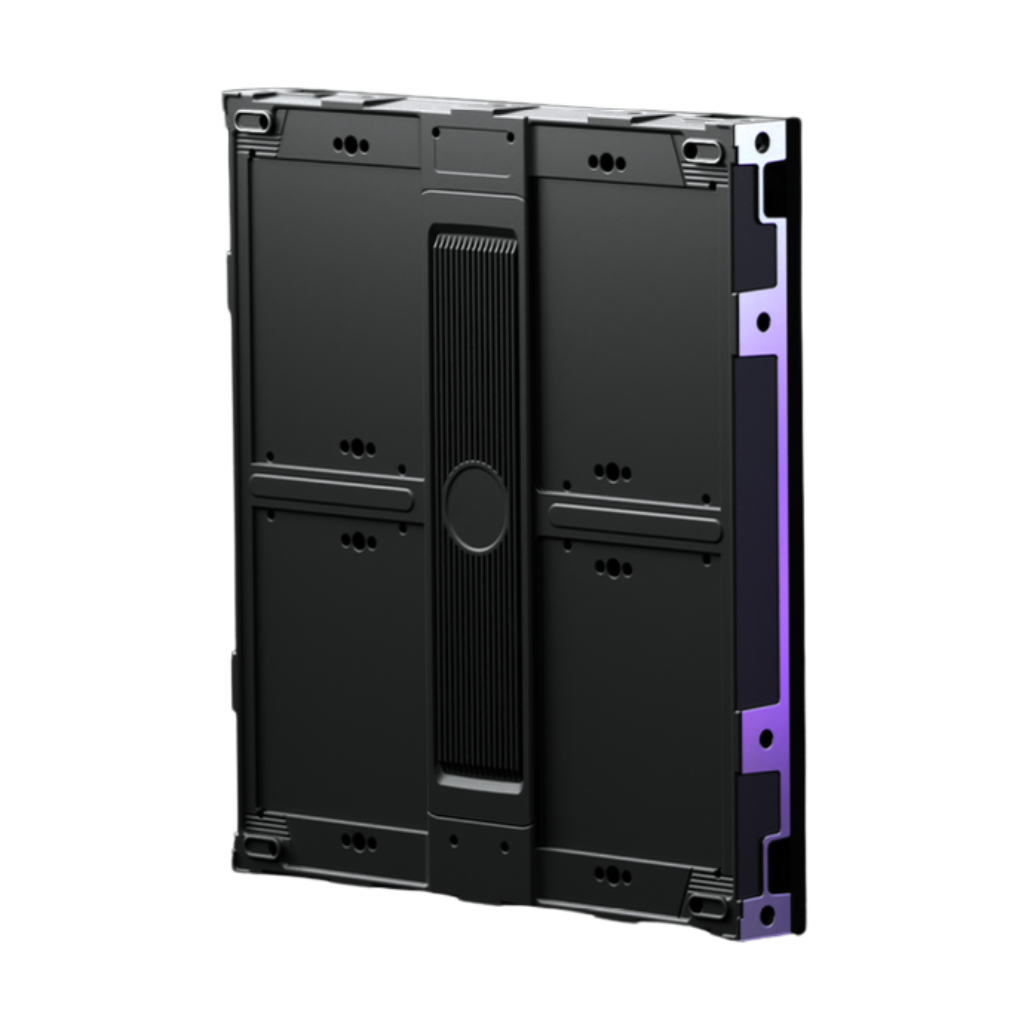

• Ventilation: While the IP65 rating protects against water, ensure the rear aluminum chassis has adequate airflow if recessed into a wall to prevent heat pocket accumulation.
