NOVASTAR VX600 PRO | Contrôleur LED Tout-en-Un 4K HDR | 3,9 Millions de Pixels

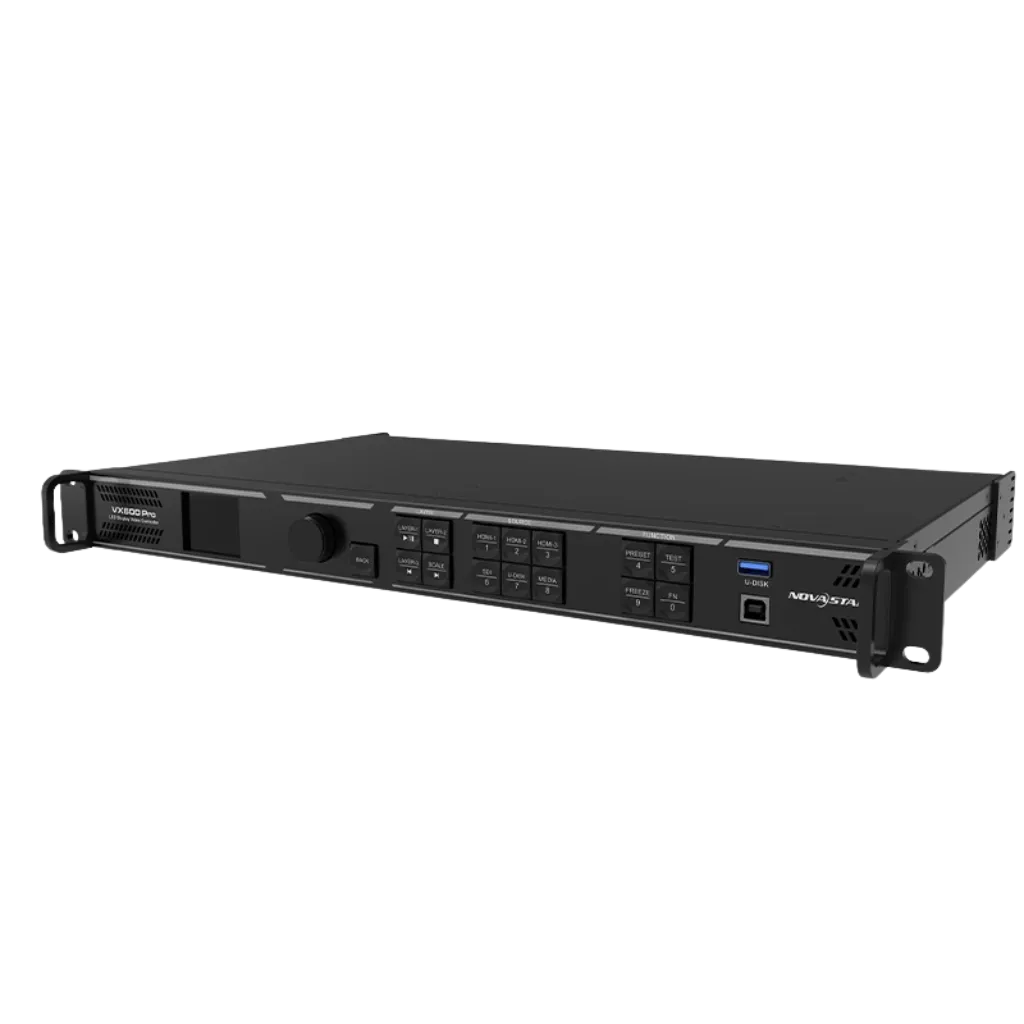

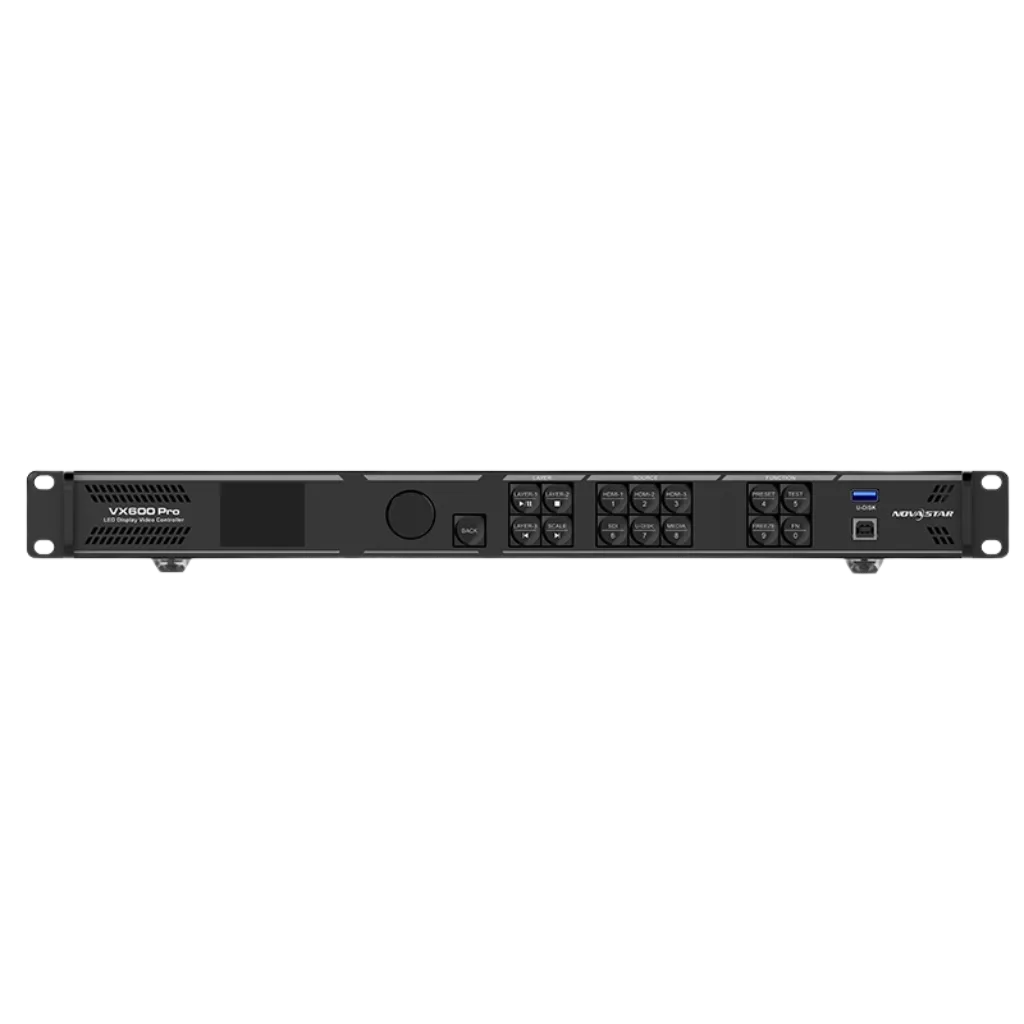

The Novastar VX600 PRO is a high-performance, all-in-one LED display controller engineered to bridge the gap between standard processing and high-resolution demands. As a professional-grade integrated solution, it combines a video processor, scaler, and sending card into a compact 1U rackmount chassis. Supporting a massive loading capacity of up to 3.9 million pixels, it is perfectly suited for medium-to-large LED video walls, ensuring seamless playback for high-definition content.

Designed for the rigorous demands of the Pro-AV industry, the VX600 PRO features 6 Gigabit Ethernet output ports, providing the necessary bandwidth for complex pixel mapping and hardware redundancy. With support for HDR (High Dynamic Range) and low-latency processing, this controller guarantees exceptional image depth, vibrant color accuracy, and fluid motion, making it an essential tool for technicians seeking reliability and visual excellence in international rental and fixed installation markets.

Advanced Processing and Signal Integrity

As experts in LED infrastructure, we recognize the VX600 PRO as a cornerstone for reliable signal distribution. The unit excels in managing diverse input sources, supporting 4K@60Hz resolutions via DisplayPort and HDMI. This ensures that the source signal maintains its original clarity before being scaled to the specific pitch of your LED cabinetry.

High Dynamic Range (HDR) and Bit-Depth

The VX600 PRO supports HDR10 and HLG, which significantly enhances the contrast ratio and grayscale performance of your LED wall. When paired with high-quality SMD or GOB (Glue on Board) LED modules, it unlocks deeper blacks and highlights, effectively increasing the perceived nits (brightness) and color volume. This is critical for maintaining visual impact in high-ambient light environments.

Redundancy and System Stability

• Layer Management: Supports up to 3 layers, allowing for creative PIP (Picture-in-Picture) configurations.
• Stepless Scaling: High-quality internal scaling ensures that low-resolution content is mapped to the pixel grid without aliasing artifacts.
• Ethernet Port Backup: The 6 output ports can be configured for primary and backup loops, preventing total screen blackout in case of cable failure.

And the source, upstream?

The VX600 Pro's 3.9 million pixels can be driven from any video output, but a multi-layer timeline calls for dedicated software. Kompass FX3 Pro fills that role: Advanced edition as soon as NDI sources or timecode locking are needed, Basic if content simply runs to a schedule.

Versatile Deployment Scenarios

The Novastar VX600 PRO is a versatile workhorse capable of supporting diverse visual environments:

• Corporate Events & Galas: Its low-latency mode and HDR support make it ideal for live keynote presentations and high-end brand activations where visual fidelity is paramount.
• Control Rooms: Reliable 24/7 operation and multi-layer management allow for the simultaneous display of several data feeds on a single large-format LED screen.
• Retail Flagship Stores: Perfect for driving high-resolution indoor video walls that utilize GOB technology for enhanced durability and wide viewing angles.
• Live Concerts & Rental: The rugged 1U design and quick-configuration front panel allow for rapid deployment and easy troubleshooting on the road.
• Houses of Worship: Handles complex scaling for wide-aspect ratio screens, ensuring the sermon and media content are perfectly framed.

Technical Optimization for Peak Performance

To maximize the efficiency of your Novastar VX600 PRO, consider the following expert advice from our technical team:

• Pixel Mapping: Always calculate your total pixel count before configuration. While the unit handles 3.9M pixels, ensuring an even distribution across the 6 Ethernet ports will optimize the refresh rate and prevent flickering.
• Viewing Distance & Pitch: When choosing your LED panels, match the VX600 PRO’s output resolution with the pixel pitch. For instance, a P2.5 wall will require more processing power per square meter than a P4.8 to maintain a sharp image at a close viewing distance.
• Power Management: Ensure the controller is connected to a stabilized power supply or UPS, as sudden voltage drops can affect the internal scaling engine and signal processing.
• Firmware Synchronization: Always verify that the firmware of the VX600 PRO matches the version of NovaLCT used for the initial setup to avoid communication errors with the LED receiving cards.
