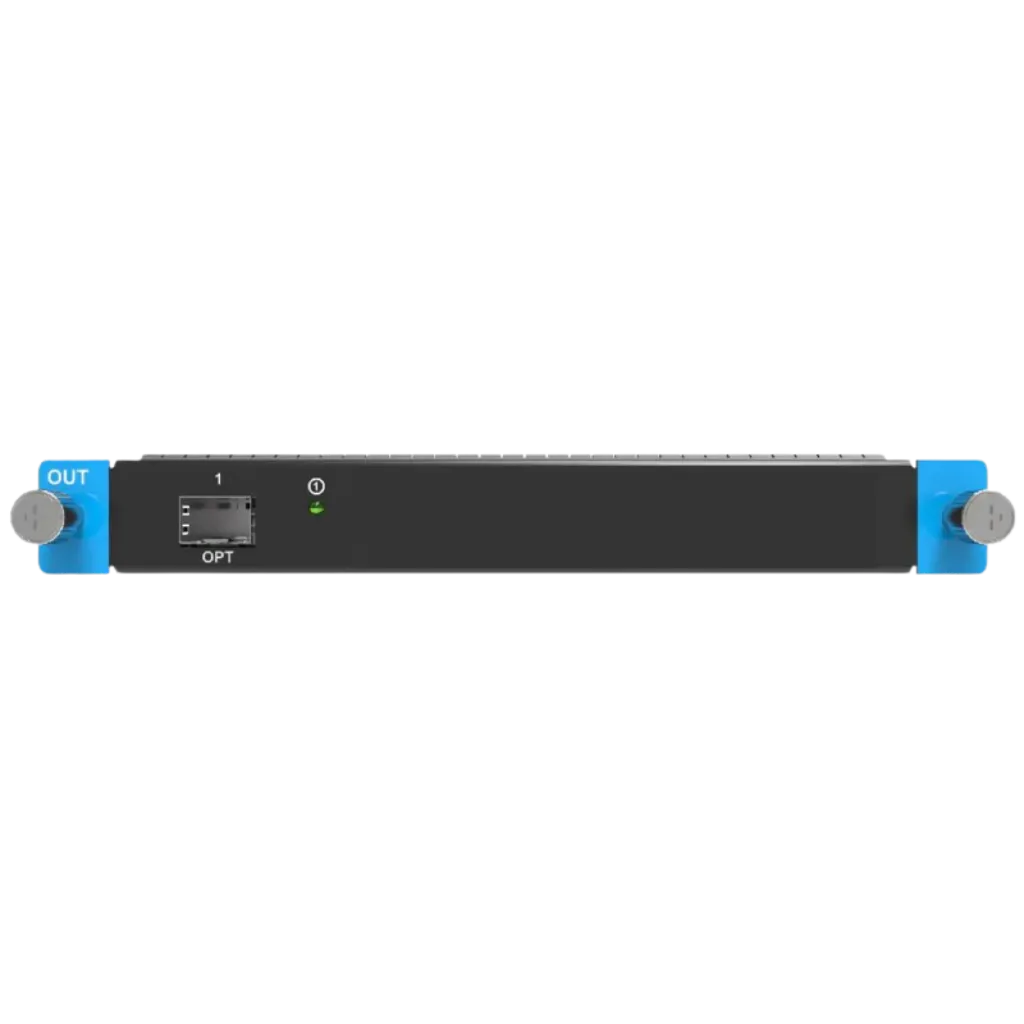

MX_1X40G_FIBER OUTPUT CARD | Carte de Sortie Optique 40G Novastar | Haute Capacité

The MX_1X40G_FIBER OUTPUT CARD is a high-performance expansion module designed for the NovaStar MX Series flagship controllers. As a professional-grade 40G fiber optic output solution, this card is engineered to handle massive data throughput, making it the backbone of large-scale LED display systems. Whether you are managing ultra-high-resolution indoor fine-pitch screens or expansive outdoor stages, this card ensures that your high-bit-depth video signals are transmitted with zero latency and absolute fidelity.

By utilizing advanced optical transmission technology, the card overcomes the distance limitations of traditional copper cabling. It allows for a clean, interference-free signal path over long distances between the control room and the LED wall. This hardware is essential for professionals seeking to maximize the performance of their COB or GOB LED displays, ensuring that ultra-high refresh rates and HDR content are delivered without compression or packet loss across the entire screen architecture.

State-of-the-Art Signal Integrity

The MX_1X40G_FIBER OUTPUT CARD represents the pinnacle of signal distribution for the COEX series ecosystem. In the world of high-end LED integration, bandwidth is the primary bottleneck. This 40G card provides four times the capacity of standard 10G links, allowing a single cable to carry significantly more pixels. This is crucial for maintaining high refresh rates (up to 7680Hz on supported receiving cards) and high frame rate content (120Hz/240Hz), which are vital for eliminating motion blur in broadcast environments.

Vivid Color and High Dynamic Range (HDR)

Leveraging the full potential of the NovaStar MX series, this fiber card supports 10-bit and 12-bit color depths. This ensures a vastly superior contrast ratio and smooth grayscale transitions, especially important when using SMD or GOB panels with low-nit brightness levels where banding can be an issue.

• 40G Bandwidth: Massive data pipeline for 4K and 8K workflows.
• Fiber Transmission: Eliminates electromagnetic interference (EMI) common in large venues.
• Redundancy Support: Seamlessly integrates into primary and backup signal loops.
• Architecture: Compatible with MX40 Pro and other COEX series chassis.

Versatile High-Capacity Applications

The MX_1X40G_FIBER OUTPUT CARD is the preferred choice for mission-critical installations where failure is not an option and resolution demands are extreme.

• Virtual Production & XR Stages: Essential for high-frame-rate rendering and low-latency tracking required in film studios using fine-pitch GOB displays.
• Large-Scale Concerts & Touring: Simplified cabling for massive LED backdrops, allowing the FOH (Front of House) to be hundreds of meters away from the stage.
• Control Rooms & Command Centers: Reliable 24/7 transmission for ultra-wide LED data visualizations where high-bit-depth grayscale is required for clarity.
• Corporate Flagships: Delivering seamless 8K content for high-end retail and lobbies using high-nit outdoor or high-contrast indoor SMD panels.

Technical Optimization & Implementation

To ensure the longevity and reliability of your MX_1X40G_FIBER OUTPUT CARD, our technical team at Pixelight recommends the following best practices:

• Optical Module Selection: Always use high-quality SFP modules that match the specific wavelength and distance requirements of your fiber run (Multi-mode vs. Single-mode).
• Viewing Distance & Pixel Mapping: While the card handles the data, ensure your pixel mapping in the VMP (Vision Management Platform) software reflects the physical layout accurately to maintain synchronized refresh rates across all cabinets.
• Maintenance: Fiber connectors are sensitive to dust. Use specialized cleaning kits before every insertion to prevent signal attenuation or "flicker" on the LED panels.
• Power Stability: Ensure the main controller chassis is connected to a stabilized power supply to protect the sensitive optical components from voltage spikes.
