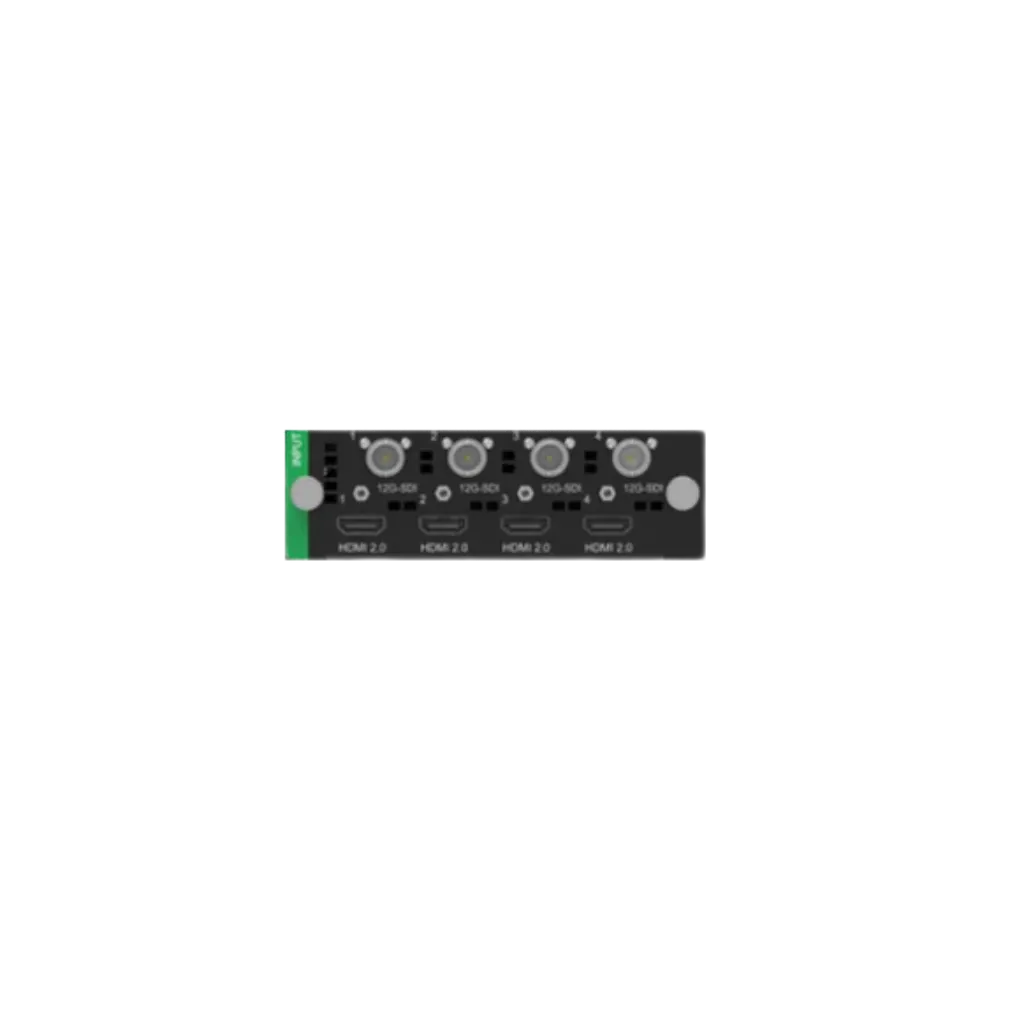

CX80 PRO INPUT CARD 2 | Carte d'Entrée 4K Octuple Novastar | 4x HDMI + 4x 12G-SDI

The CX80 PRO INPUT CARD 2 is a high-density processing module designed specifically for the Novastar CX80 Pro flagship controller. This professional expansion card bridges the gap between broadcast-grade signals and high-end LED display systems. By providing eight simultaneous 4K inputs, it allows technicians to manage complex multi-source setups without the need for external switchers or signal converters. This card ensures that every pixel of your high-resolution LED wall—from fine-pitch 4K UHD displays to massive rental screens—is fed with uncompromised signal integrity. Whether you are managing high-refresh-rate media servers or live broadcast cameras, this input card delivers the low-latency performance required for mission-critical visual environments.

The Ultimate Input Solution for High-Resolution LED Ecosystems

In the world of professional LED displays, signal stability and bandwidth are paramount. The CX80 PRO INPUT CARD 2 is engineered to support the demanding requirements of COB and GOB LED technologies, where high contrast ratios and HDR vividness must be maintained from source to screen. By utilizing 12G-SDI and HDMI 2.0 interfaces, this card supports the massive data throughput needed for 4K@60Hz resolutions, ensuring fluid motion without stuttering.

Advanced Signal Processing and Reliability

• Broadcasting Excellence: The four 12G-SDI ports are essential for professional camera feeds, offering superior signal locking and long-distance transmission compared to standard HDMI.
• High Dynamic Range (HDR): Compatible with HDR10 and HLG standards to maximize the color gamut and brightness (Nits) performance of your LED panels.
• Hot-Swappable Design: For fixed installations or touring events, the hot-swappable nature of this module allows for immediate hardware replacement or upgrades without powering down the entire controller rack.
• Sub-millisecond Latency: Optimized for the COEX control system, it minimizes the delay between the video input and the LED panel refresh rate, which is critical for live IMAG (Image Magnification) applications.

Versatile Applications for Professional Displays

The CX80 PRO INPUT CARD 2 is the preferred choice for environments where versatility and high input density are required:

• Broadcast & TV Studios: Seamlessly integrate multiple 12G-SDI camera feeds directly into the LED backdrop controller for news or talk show sets.
• Live Concerts & Touring: Manage multiple 4K media servers and live IMAG feeds from a single module, reducing the footprint of the control foh.
• Control Rooms & NOCs: Monitor up to eight independent UHD data feeds on a single large-scale fine-pitch LED video wall.
• Corporate Events: Handle complex presentations that require switching between various guest laptops (HDMI) and professional video playback systems simultaneously.

Technical Configuration and Best Practices

To maximize the performance of your CX80 PRO INPUT CARD 2 and your LED display system, our technical team recommends the following:

• Cable Quality: Always use high-quality 12G-rated BNC cables for SDI feeds to prevent signal drops and bit depth loss, especially for cable runs exceeding 50 meters.
• EDID Management: Utilize the Novastar VMP software to customize the EDID settings for the HDMI 2.0 ports. This ensures your media servers output the exact native resolution of your LED wall, avoiding unwanted scaling artifacts.
• Heat Dissipation: Ensure the host CX80 Pro controller is installed in a well-ventilated rack. Processing eight 4K streams simultaneously generates significant thermal load.
• Redundancy: Take advantage of the dual-port types (HDMI/SDI) to set up primary and backup signal paths for high-stakes live events.
