Novastar MCTRL R5 | Contrôleur d'Envoi 4K | Rotation & Mosaïque Libre par Molette

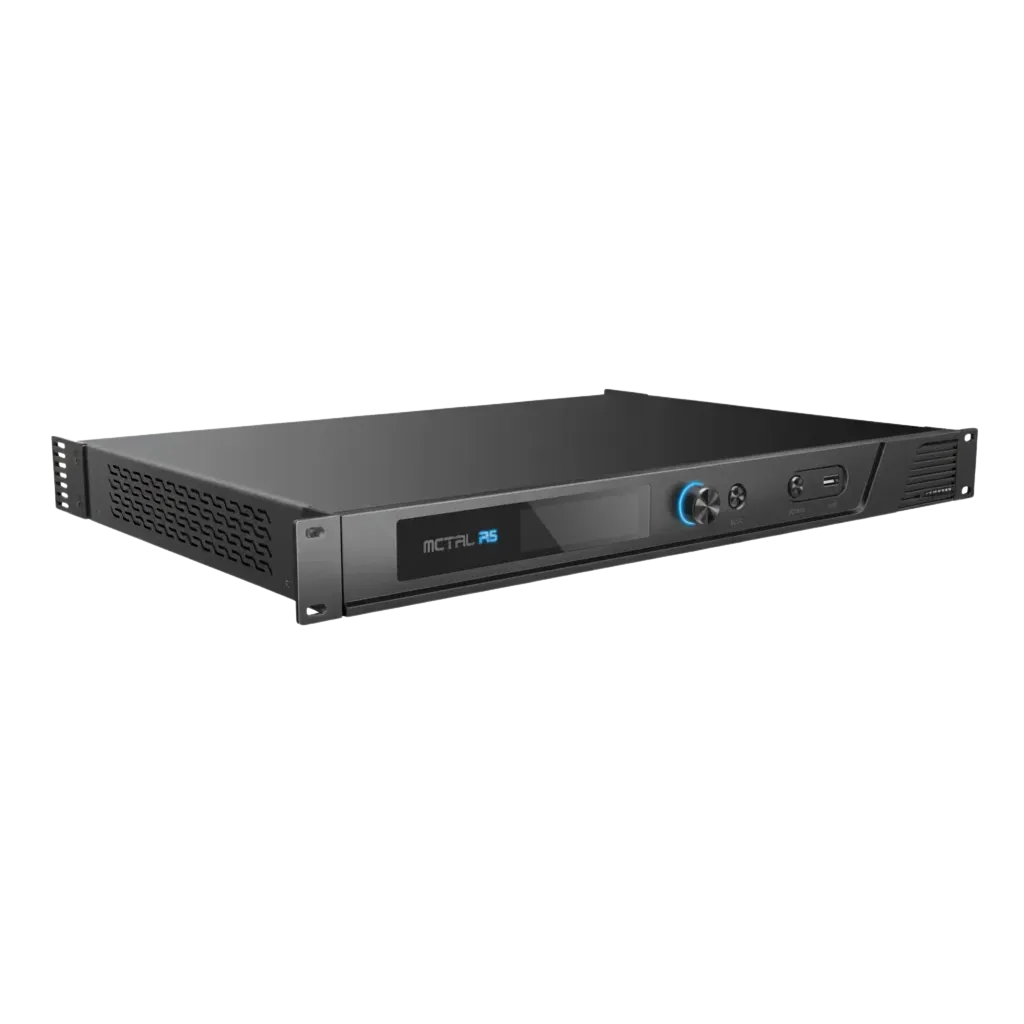

The Novastar MCTRL R5 is a high-performance 4K sending controller designed for professionals who demand precision and creative flexibility. As a standalone solution, it features an intuitive physical control wheel and a front-panel LCD screen, allowing for rapid configuration of LED walls without a dedicated PC. This unit excels in handling non-standard resolutions and creative layouts, supporting up to 4.15 million pixels with a maximum width/height of 3840 pixels. Its robust design ensures stable signal transmission for both indoor and outdoor LED displays, making it a cornerstone for high-end visual deployments.

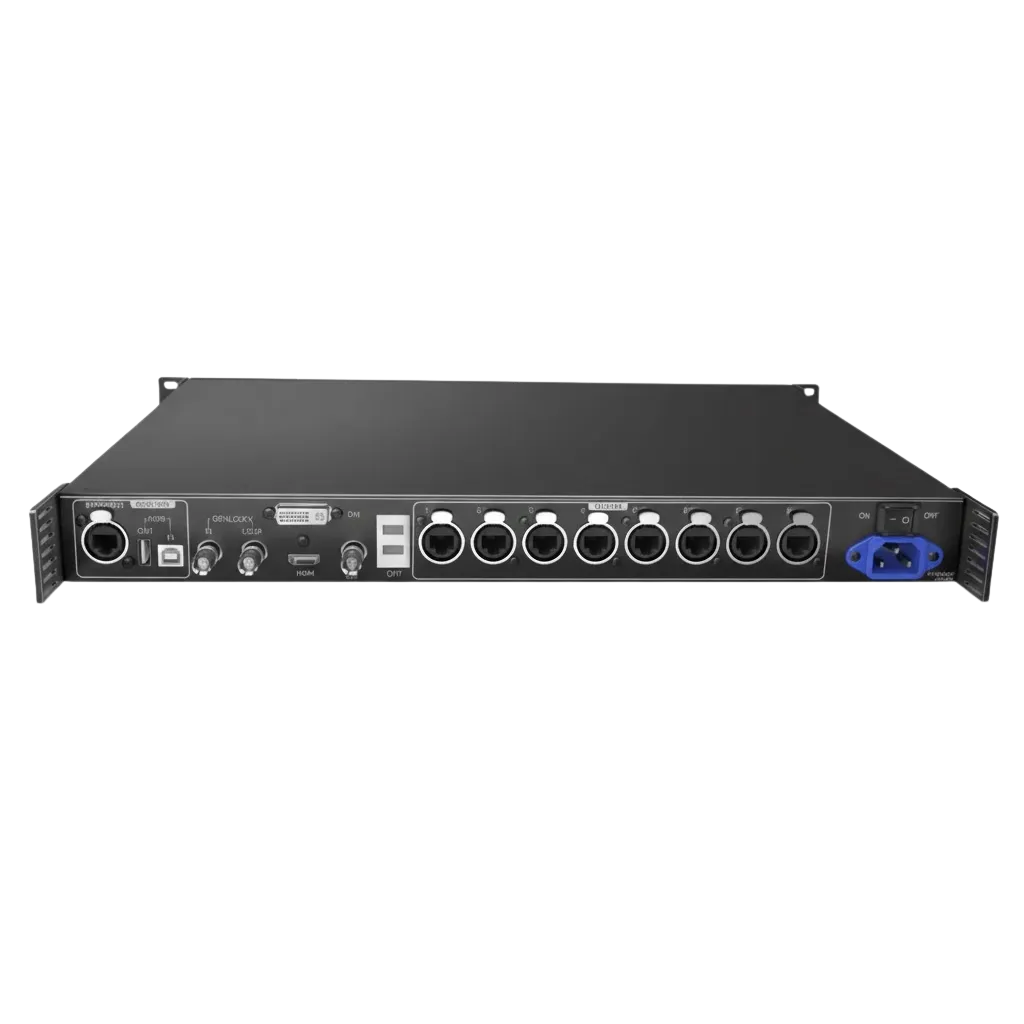

Equipped with 8 Gigabit Ethernet ports and 2 10G optical outputs, the MCTRL R5 offers massive data throughput to maintain high refresh rates and deep color depth across large-scale LED surfaces. Whether you are managing ultra-fine pitch SMD screens or high-brightness GOB modules, this controller provides the processing power necessary for fluid, flicker-free imagery in mission-critical environments.

Professional Grade Signal Processing & Rotation

The MCTRL R5 stands out in the Pixelight catalog for its advanced hardware-level processing. Unlike standard controllers, the R5 supports free rotation of LED cabinets at any angle. This is essential for creative stage designs where SMD panels are mounted in diamond or circular patterns. The integrated "Free Splicing" technology allows for seamless mapping of irregular screen shapes, ensuring the refresh rate remains consistent across all receiving cards, preventing visual tearing during high-speed motion playback.

Advanced Connectivity and Redundancy

• 4K UHD Input: Supports HDMI 2.0 and DP 1.2, ensuring compatibility with the latest media servers.
• Optical Transmission: The dual 10G SFP ports allow for long-distance signal transmission without electromagnetic interference, ideal for large stadiums or festival grounds.
• Bit-Depth & Color: Supports 8-bit, 10-bit, and 12-bit inputs, maximizing the contrast ratio and color gamut of your LED modules.
• Hardware Stability: Built with professional-grade components to handle the thermal demands of 24/7 operation in control rooms or broadcast studios.

By utilizing the MCTRL R5, technicians can optimize the grayscale performance and brightness uniformity of their LED walls, ensuring the final output meets the highest international broadcasting standards.

Versatile Deployment Scenarios

The MCTRL R5 is engineered for versatility, serving a wide range of professional applications where standard controllers fall short:

• Live Events & Concerts: Perfect for touring frames and creative stage sets that require angled LED panels and rapid on-site troubleshooting via the R5 control wheel.
• Corporate Showrooms: Its ability to handle high-resolution 4K content makes it ideal for ultra-fine pitch indoor displays where image clarity and color accuracy are paramount.
• Broadcast Studios: Provides the low-latency and high-refresh-rate output necessary to avoid moiré patterns and flickering on camera.
• Immersive Art Installations: The Free Splicing capability allows artists to treat the LED wall as a non-linear canvas, breaking away from traditional 16:9 aspect ratios.

Technical Optimization for the MCTRL R5

To achieve the best visual results with the Novastar MCTRL R5, consider the following expert recommendations:

• Cable Management: Use high-quality shielded Cat6e cables for the 8 Ethernet outputs to maintain signal integrity over the maximum 100-meter range. For longer distances, always utilize the 10G optical ports with compatible fiber transceivers.
• Resolution Mapping: When utilizing the rotation feature, ensure your receiving card configuration (RCFGX) is updated to support the specific cabinet orientation to avoid mapping artifacts.
• Power Sequencing: Always power on the LED display and receiving cards before the MCTRL R5 to ensure the handshake protocol correctly identifies the total pixel load.
• Firmware Matching: Ensure the MCTRL R5 firmware version is synchronized with your Novastar LCT or V-Can software to unlock the full potential of the Smart Setting and Screen Calibration features.
