LEDMATRIX 1.9 indoor BF

The LEDMATRIX 1.9 indoor BF is a high-performance modular LED solution engineered for demanding indoor environments where visual excellence is paramount. With a fine pixel pitch of 1.95 mm and a high pixel density of 262,144 pixels per square metre, this display delivers razor-sharp imagery and seamless video playback. Designed for versatility, it features a brightness of 1000 nits and a 3840 Hz refresh rate, ensuring vibrant colours and deep blacks even in well-lit professional spaces, with no flicker on camera.

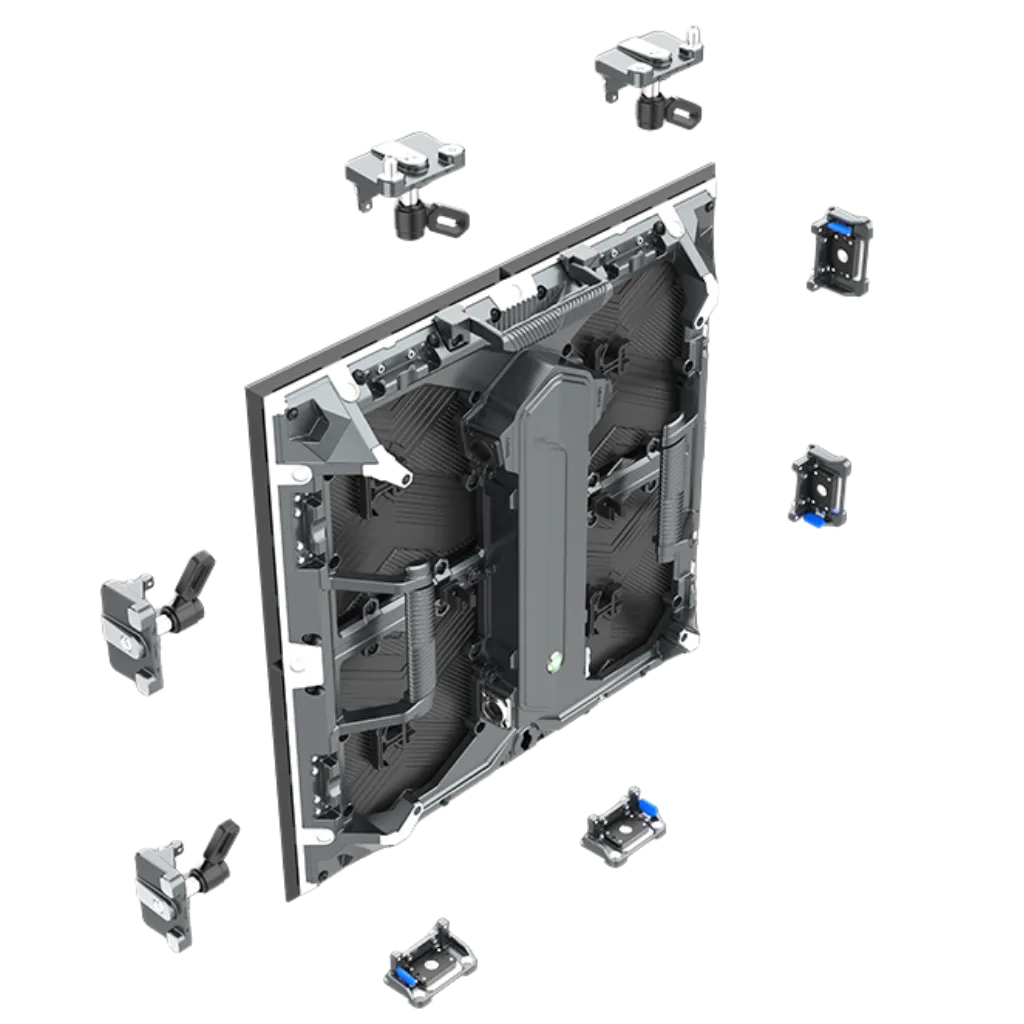

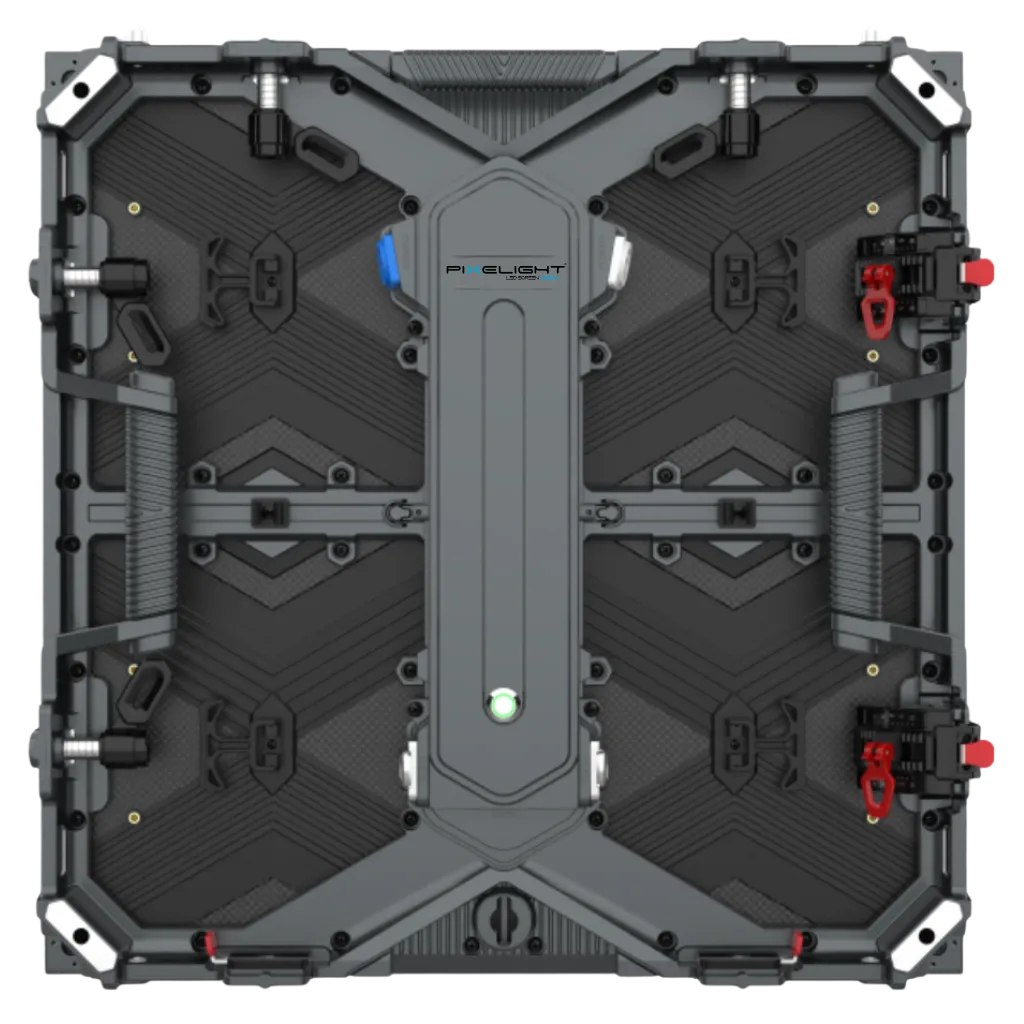

The lightweight 6.6 kg chassis, a 500 x 500 x 105 mm cabinet built from 250 x 250 mm modules, allows for creative installations, from large-scale video walls to custom scenic designs, with front-access maintenance and IP30 protection. Built for reliability around SMD1515 Black Face LEDs, the LEDMATRIX 1.9 provides an immersive viewing experience with wide 160° horizontal and 140° vertical viewing angles, making it the preferred choice for broadcast studios, corporate lobbies and flagship retail locations looking to elevate their digital presence.

Technical Excellence in Fine Pitch LED Engineering

At Pixelight, we select components that meet the rigorous standards of the pro-AV industry. The LED MATRIX 1.95 utilizes premium SMD1515 (Surface Mounted Device) technology, which provides superior color mixing and a high contrast ratio. Unlike standard displays, our BF series focus on chromatic uniformity across the entire surface.

High Refresh Rate and Visual Stability

Equipped with a 3840Hz refresh rate, this display is "camera-ready," eliminating flicker and scan lines during filming or live broadcasts. This makes it an ideal solution for TV studios and XR stages. Key technical advantages include:

• Pixel Pitch: 1.95mm for high-definition rendering at close proximity.
• Wide Viewing Angles: 160° horizontal and 140° vertical coverage for maximum audience reach.
• Thermal Management: Efficient heat dissipation ensures the longevity of the SMD diodes and maintains color consistency over time.
• Reliability: While GOB technology is often used for impact resistance, our precision-aligned SMD1515 modules offer the highest level of optical clarity for indoor high-end applications.

Versatile Applications for High-Impact Visuals

The LED MATRIX 1.95 is designed for versatility across various professional sectors. Its high pixel density and slim profile make it suitable for:

• Broadcast & TV Studios: The high refresh rate prevents moiré patterns, ensuring flawless on-camera performance.

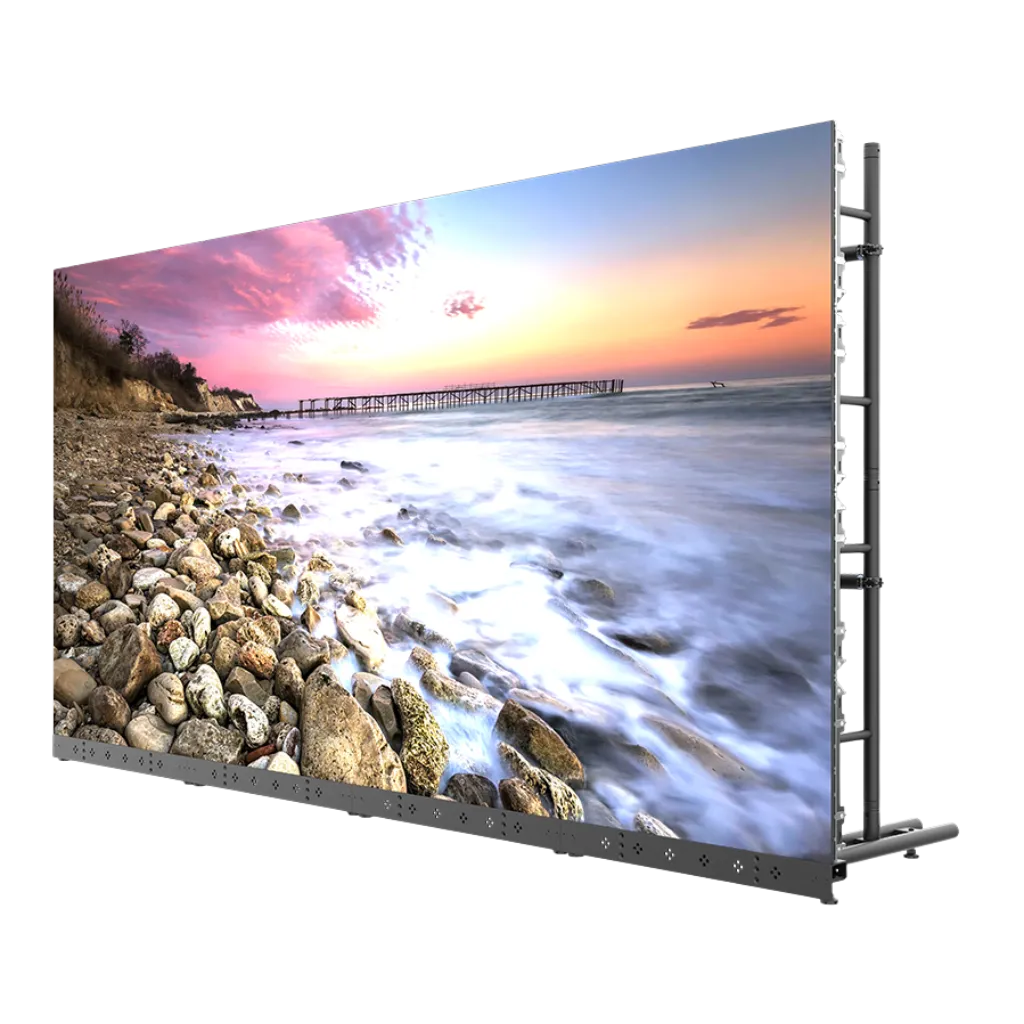

• Corporate Experience Centers: Create immersive brand stories in lobbies or executive boardrooms with seamless 4K or 8K video walls.
• Retail & Luxury Showrooms: High-contrast imagery enhances product visuals, driving customer engagement in high-end shopping environments.
• Control Rooms: The fine pitch allows for the clear display of complex data, maps, and multi-window monitoring.

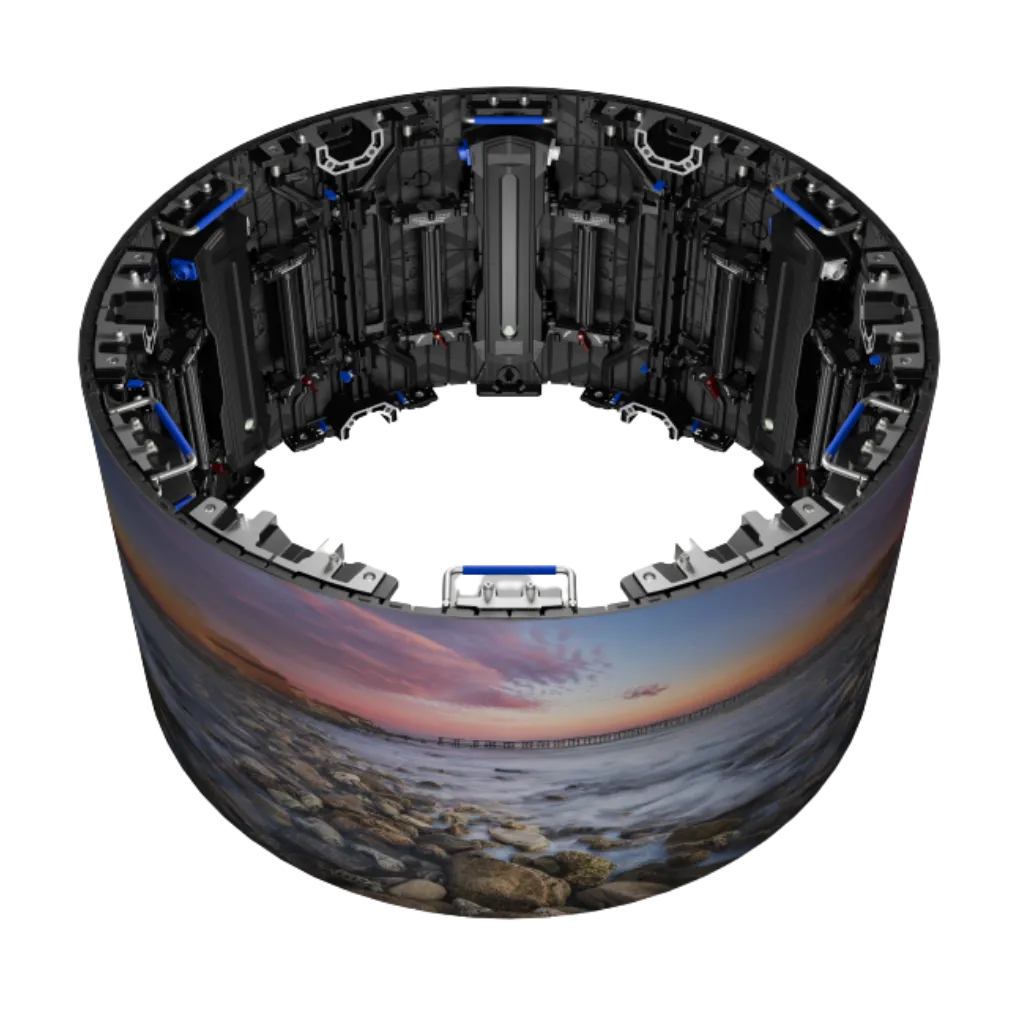

• Exhibitions & Events: Its modular nature allows for creative configurations, including curved or staggered layouts, providing a unique edge for event scenography.

Expert Installation and Maintenance Tips

To maximize the performance of your LED MATRIX 1.95, our technical team recommends the following guidelines:

• Optimal Viewing Distance: With a 1.95mm pitch, the "retina" sweet spot starts at approximately 2 meters, making it perfect for boardrooms and retail galleries.
• Controller Configuration: We recommend using professional-grade Novastar or Brompton processors to fully leverage the 3840Hz refresh rate and 1000 nits brightness range.
• Power Management: Ensure a stable power supply with proper grounding to protect sensitive SMD components from voltage spikes.

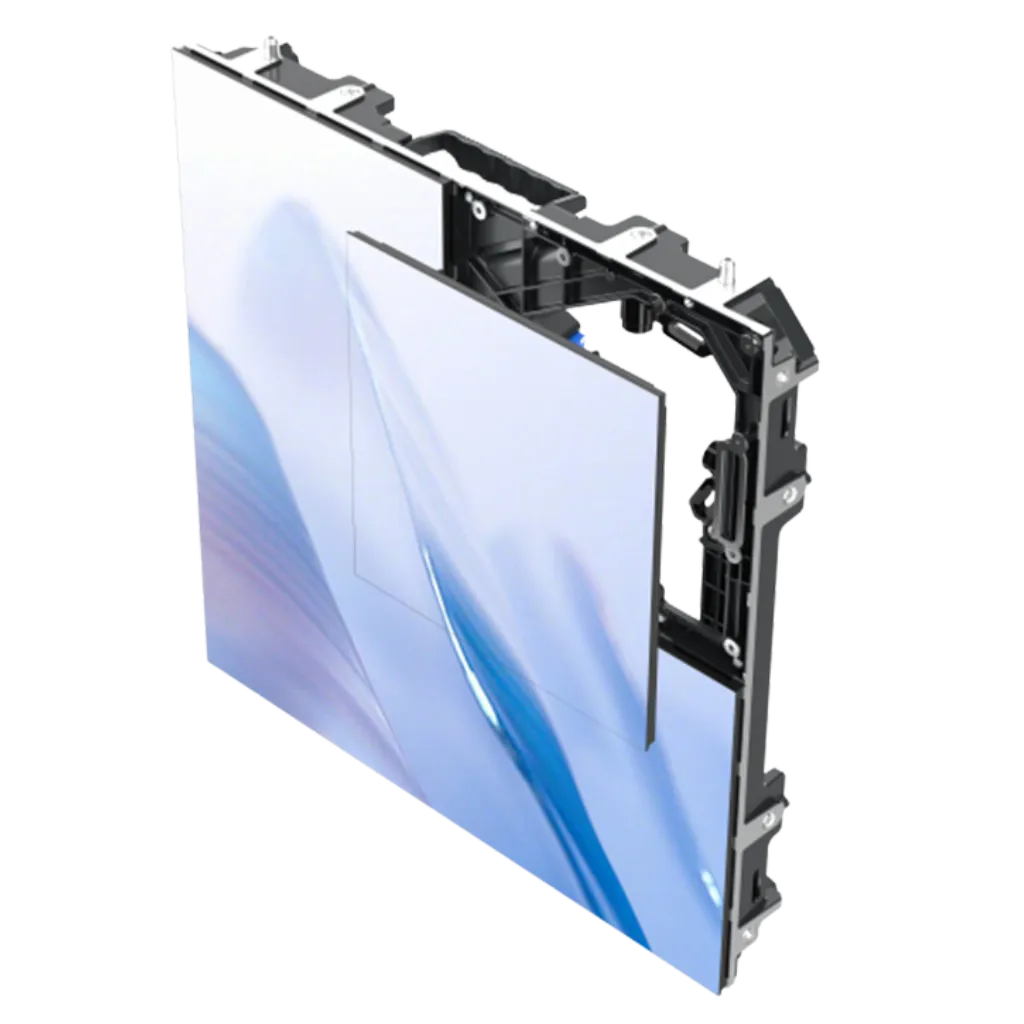

• Front/Rear Access: Utilize the modular 250x250mm design for easy maintenance. Always use a vacuum suction tool for module removal to avoid damaging the fine-pitch pixels.
• Calibration: Periodic brightness and color calibration are advised to maintain uniformity, especially when adding new modules to an existing setup.
