ATMOS 2.9 (Flexible)

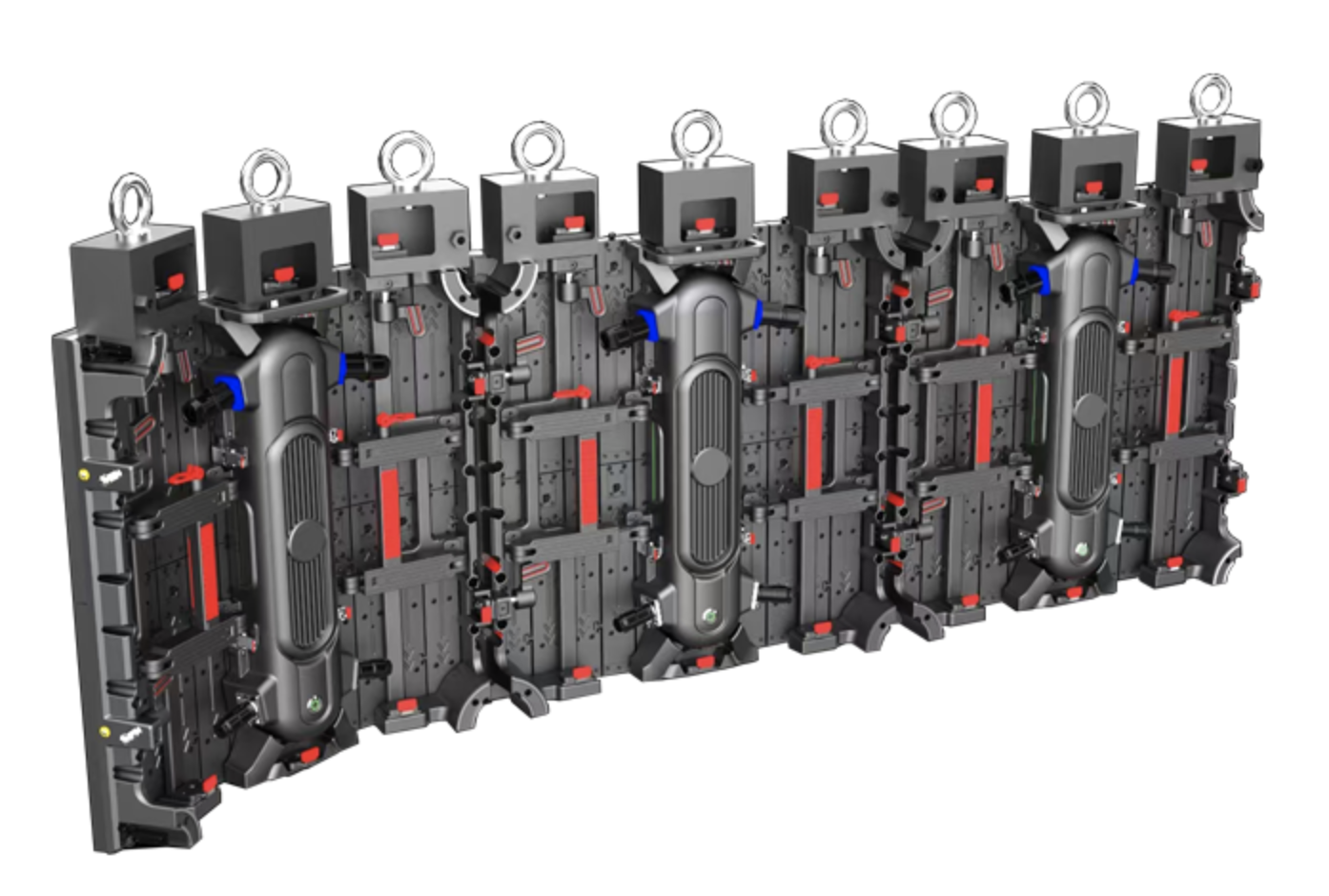

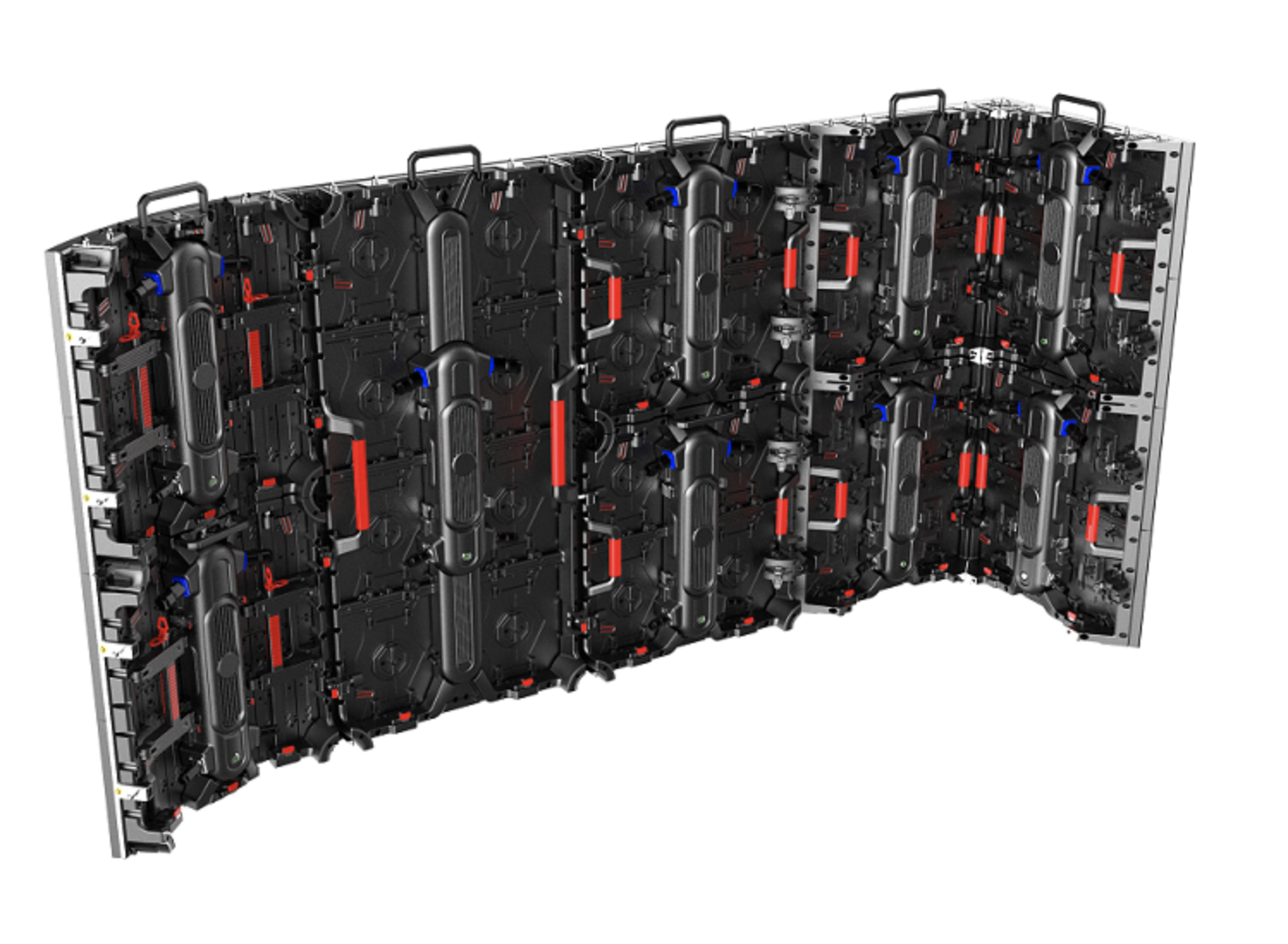

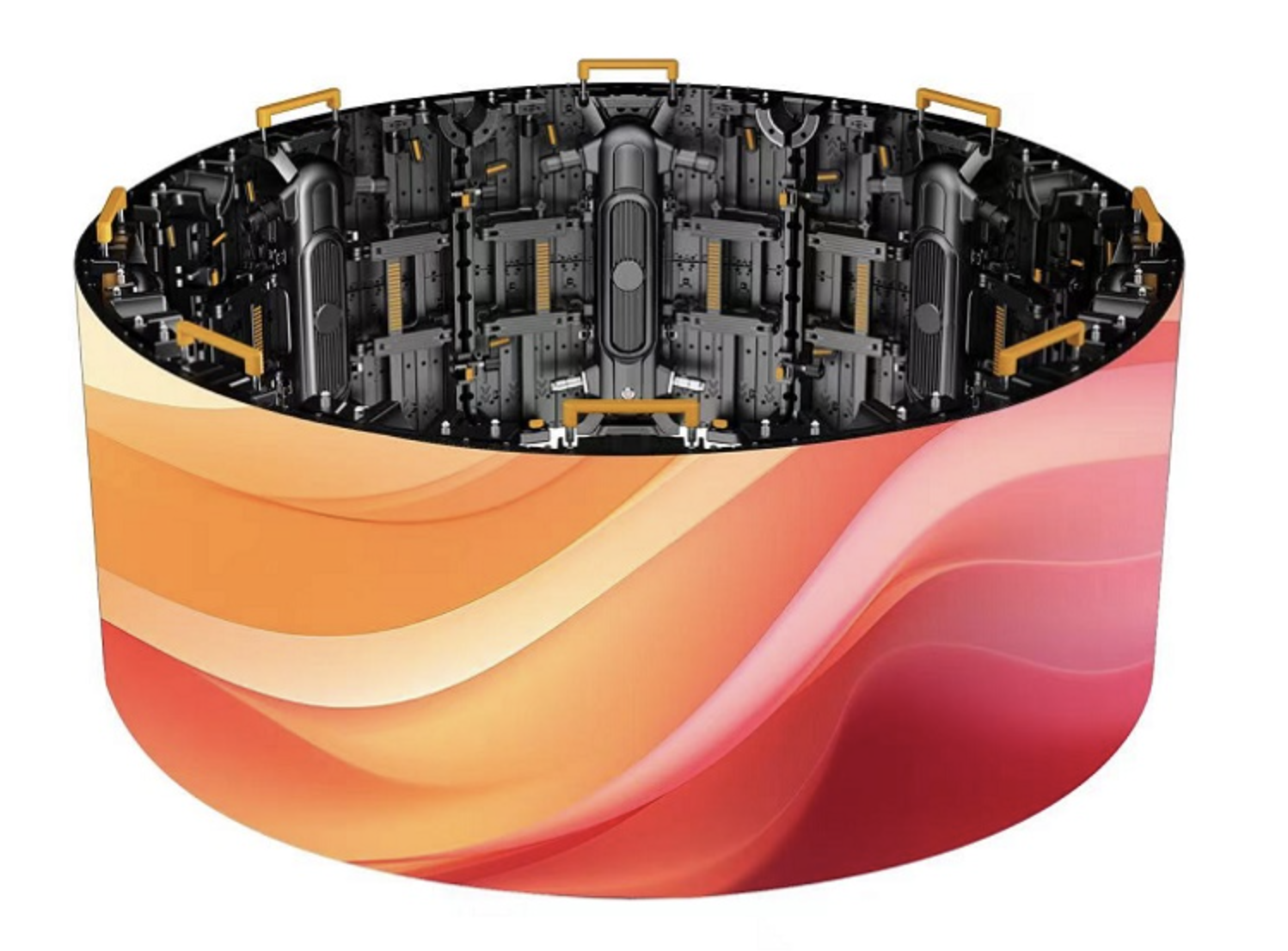

The ATMOS 2.9 Flexible is a high-performance indoor LED display solution designed to break the boundaries of conventional flat screens. Featuring a 2.9 mm pixel pitch and 168 x 168 pixels per tile, this series is engineered specifically for the rental and creative retail markets, offering unparalleled flexibility. Whether your project requires concave curves, convex shapes or seamless cylindrical columns, the ATMOS 2.9 delivers structural versatility without compromising visual integrity. With a brightness of 800 nits, it provides vibrant, punchy imagery perfect for controlled indoor environments where lighting conditions vary.

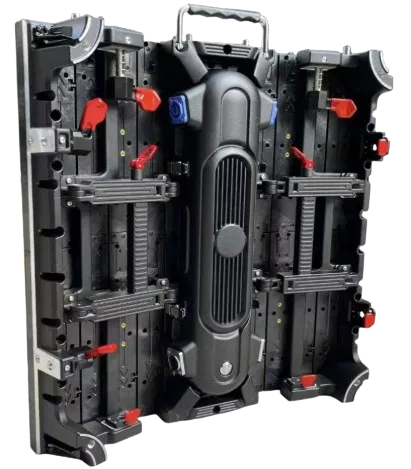

Built around a die-cast aluminium chassis and modular 250 x 250 mm flexible modules in a 500 x 500 x 80 mm cabinet, the ATMOS 2.9 combines mechanical suppleness with broadcast-grade electronics: a 3840 Hz refresh rate keeps content flicker-free on live camera and smartphone capture, a 1/28 scan mode maximises scanning precision, and dual access maintenance lets technicians service modules from the front or the rear. Quick-locking hardware makes it a favourite for event professionals who demand fast assembly and reliable performance on high-end temporary installations or permanent architectural features.

State-of-the-Art Visual Performance

As a technical leader in France, Pixelight ensures the AMPLITUDE PRO 2.9 meets the most rigorous broadcasting standards. The display features a high refresh rate of 3840Hz, effectively eliminating flicker and horizontal lines during filming, making it an ideal choice for TV studios and high-profile events. The SMD (Surface Mounted Device) 1515 technology provides a superior contrast ratio and deep black levels, ensuring that every pixel pops with clarity.

Reliability and Build Quality

• Refresh Rate: 3840Hz ensures smooth motion and global shutter compatibility.
• LED Die: Premium SMD1515 for optimal color consistency and white balance stability.
• Module Dimensions: Compact 250x250mm modules allow for intricate geometries and tight curve radii.
• Thermal Management: Efficient heat dissipation ensures a long lifespan and minimal color shift over time.

For high-traffic environments, we also offer guidance on GOB (Glue on Board) enhancements to increase impact resistance, though the standard SMD configuration provides the highest optical purity for fine-pitch indoor viewing.

Versatile Application Scenarios

The AMPLITUDE PRO 2.9 is built for creative expression across various international sectors:

• Rental & Live Events: Create immersive curved backdrops for concert stages or corporate keynotes that wrap around the presenters.
• Luxury Retail: Design column-wrapped LED displays or wave-shaped screens for flagship stores in Paris, Dubai, or New York to captivate high-end clientele.
• Broadcast Studios: Benefit from the 3840Hz refresh rate for moiré-free filming in set designs.
• Control Rooms & Boardrooms: The 2.9mm pitch provides sharp text legibility and high-definition video playback for critical monitoring and high-level presentations.

From creative architectural curves to standard high-resolution video walls, the AMPLITUDE PRO 2.9 adapts to your most ambitious design requirements.

Technical Implementation & Maintenance

To maximize the lifespan and visual output of your AMPLITUDE PRO 2.9, Pixelight’s technical team recommends the following best practices:

• Optimal Viewing Distance: With a 2.9mm pitch, the minimum viewing distance is approximately 3 meters, making it perfect for retail storefronts and medium-sized event stages.
• Controller Configuration: We recommend using high-end Novastar or Brompton processing to fully leverage the 3840Hz refresh rate and fine-tuned grayscale.
• Power Management: Ensure stable 220V power distribution; avoid daisy-chaining too many cabinets to prevent voltage drops that can affect brightness uniformity.

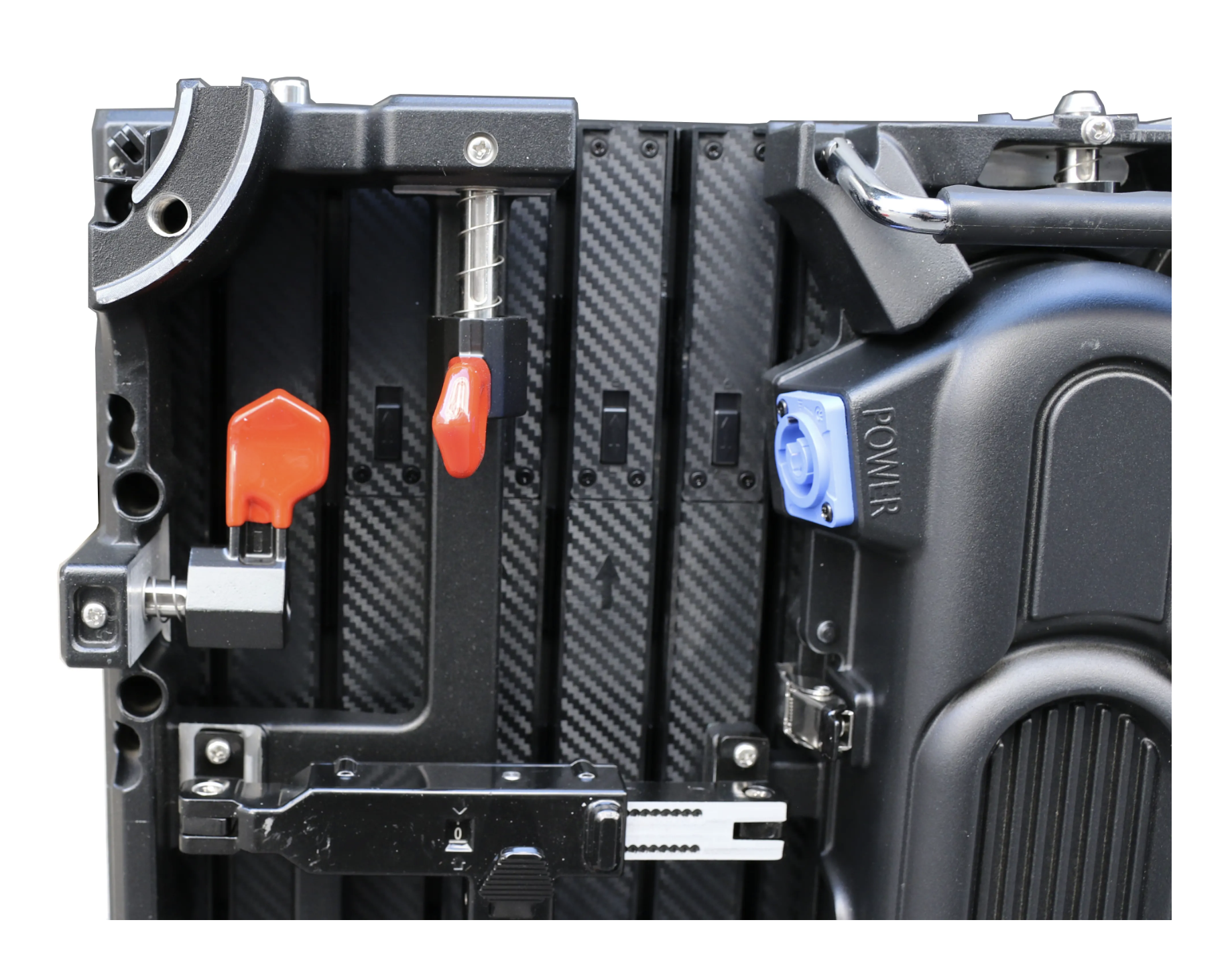

• Maintenance: The modular 250x250mm design allows for easy front or rear service. Always use an anti-static tool when handling modules to protect the sensitive SMD components.
