RADIANT 2

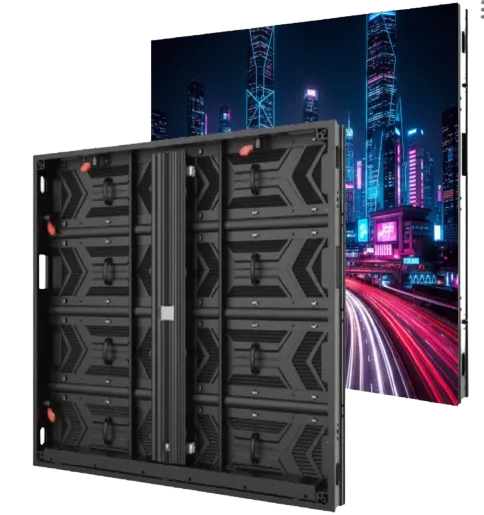

The RADIANT PRO 2.9 is a high-performance outdoor LED display designed specifically for wall-mounted installations where space is a premium. Featuring a 2.9mm pixel pitch, this module delivers exceptional resolution for close-range outdoor viewing. Its standout feature is the Total Front Maintenance architecture, allowing all components—including modules, power supply units, and receiving cards—to be serviced from the front. This eliminates the need for bulky rear structures, enabling an ultra-slim profile against any building facade. With a powerful brightness of 4,500 nits, the display ensures crystal-clear visibility even under direct sunlight, providing a premium visual experience for demanding architectural and commercial projects.

Technical Excellence: High-Density Outdoor Engineering

As technical experts, we prioritize the balance between durability and visual fidelity. The RADIANT PRO 2.9 utilizes high-grade SMD1415 LEDs, known for their excellent stability and wide viewing angles. Unlike traditional outdoor DIP technology, these SMD components offer superior color mixing and a high contrast ratio, ensuring deep blacks and vibrant hues even in bright environments.

Reliability and Refresh Rates

To meet the standards of modern broadcasting and high-end digital signage, this series boasts a refresh rate of 3840Hz. This high-frequency operation eliminates flickering and "ghosting" effects, making it ideal for mobile photography and live video feeds. Key technical advantages include:

• Brightness Management: 4500 nits intensity with automatic dimming sensors to adapt to ambient light conditions.
• Heat Dissipation: Advanced aluminum module casing (500x250mm) designed for passive cooling and longevity.
• Precision Alignment: Die-cast aluminum frames ensure a seamless canvas with no visible gaps between cabinets.

While GOB (Glue on Board) technology is an option for impact resistance, the SMD1415 used here is specifically optimized for thermal expansion, preventing pixel failure during extreme temperature fluctuations common in outdoor environments.

Versatile Installation Scenarios

The RADIANT PRO 2.9 is engineered for high-traffic environments where visual impact and space optimization are critical. Its unique front-access design makes it the preferred choice for:

• Luxury Retail Facades: High-resolution digital storefronts that require a slim, integrated look without protruding into the sidewalk.
• Corporate Headquarters: Sleek outdoor brand messaging displays mounted directly onto glass or concrete walls.
• Transportation Hubs: Informational signage in airports or train stations where rear access is blocked by structural walls.
• High-End DOOH (Digital Out Of Home): Premium advertising spots in urban centers where a 2.9mm pitch provides a "TV-like" quality to pedestrians.

Whether it is a permanent architectural integration or a high-resolution billboard, the RADIANT PRO series provides the reliability expected from Pixelight technology.

Technical Maintenance and Calibration Advice

To maximize the lifespan of your RADIANT PRO 2.9, our engineering team recommends the following best practices:

• Optimal Viewing Distance: With a 2.9mm pitch, the minimum viewing distance is approximately 3 meters. For 4K resolution displays, ensure your controller supports the total pixel count.
• Power Management: Utilize a stabilized power supply to protect against voltage spikes. We recommend a 20% headroom on power load calculations to prevent overheating.
• Software Calibration: Use advanced calibration software to match LED batches. Although factory-calibrated, periodic chromaticity adjustments maintain uniformity over years of operation.
• Total Front Access: Ensure the mounting surface is perfectly flat. The front-service magnetic tools should be used carefully to avoid "edge-stress" on the SMD pixels during maintenance.
