GOB FLEX 2.5 (Module)

GOB FLEX 2.5 — flexible indoor LED module

The Pixelight GOB FLEX 2.5 is a flexible LED module measuring 480 x 320 mm, with a 2.5 mm pixel pitch, 800 nits and SMD1515 LEDs protected by a GOB (Glue On Board) resin. It is built for indoor curved shapes that rigid cabinets cannot follow: columns, arches, waves, rounded corners and furniture cladding.

The GOB resin is the central argument. It embeds the LED in a transparent layer that absorbs impact, abrasion and humidity: a GOB module withstands contact with the public where a bare SMD module loses pixels on the first knock. That is what makes the flexible format viable in retail, scenography and events, where the screen is within reach. The IP43 rating covers dust and light splashes, not outdoor use.

Key specifications

Pixel pitch: 2.5 mm

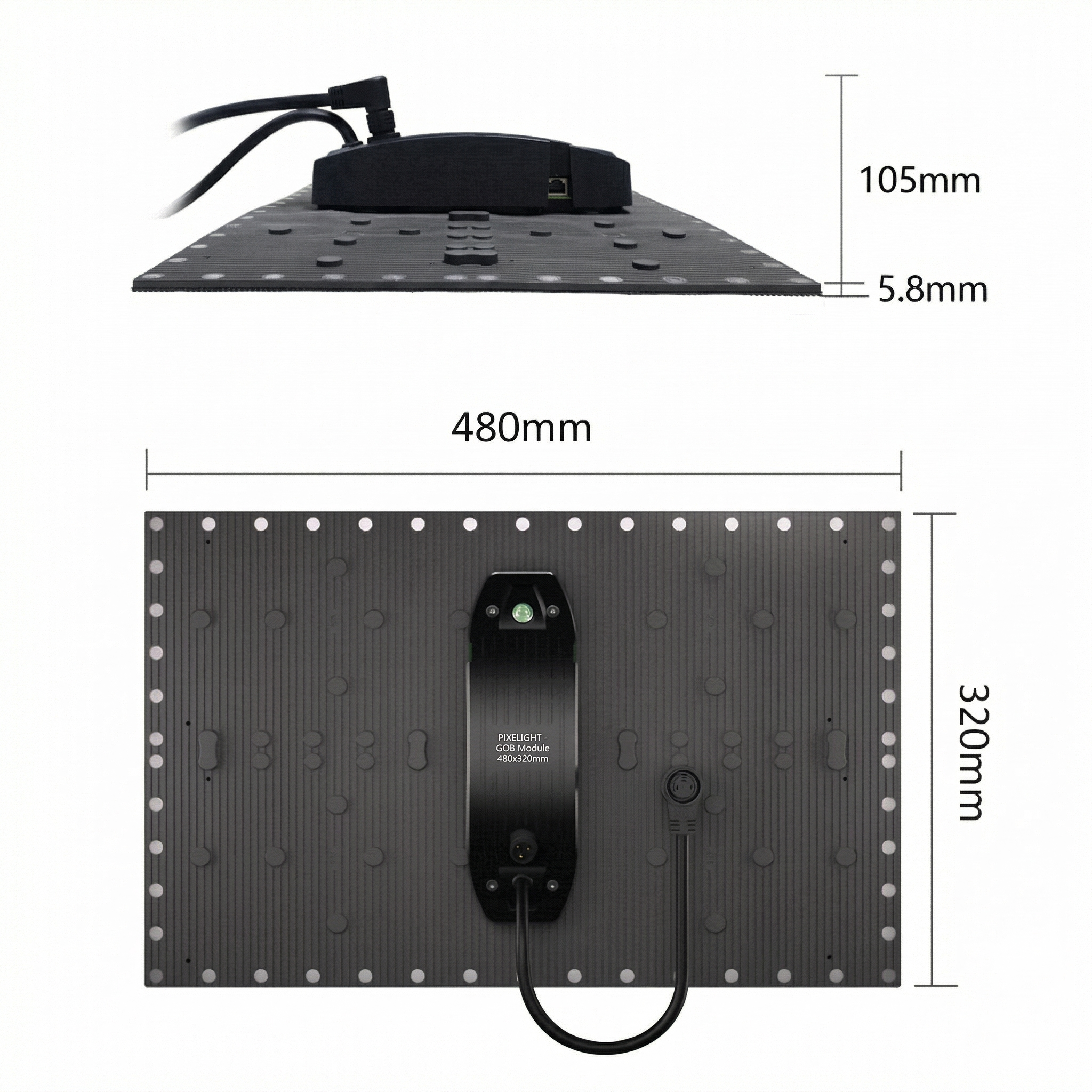

Module size: 480 x 320 mm
Brightness: 800 nits
LED: SMD1515 with GOB resin
Ingress protection: IP43
Application: indoor curved surfaces

GOB FLEX 2.5 (module) — technical analysis

The GOB FLEX 2.5 is a flexible 480 x 320 mm LED module with a 2.5 mm pitch, 800 nits and SMD1515 LEDs under a GOB resin. It addresses indoor curved shapes that rigid cabinets cannot follow: columns, arches, waves, rounded corners, furniture cladding.

The GOB resin embeds the LED in a transparent layer that absorbs impact, abrasion and humidity. A GOB module withstands contact with the public where a bare SMD module loses pixels on the first knock — which is what makes the flexible format viable in retail, scenography and events. IP43 covers dust and light splashes, not outdoor installation.

To settle at project stage: the minimum admissible bend radius for the intended design, the position of the joints between modules — decided at layout stage and impossible to correct once the structure is built — and the mounting method (magnets, industrial hook-and-loop or a bespoke frame). Comfortable viewing distance starts at 2.5 m.

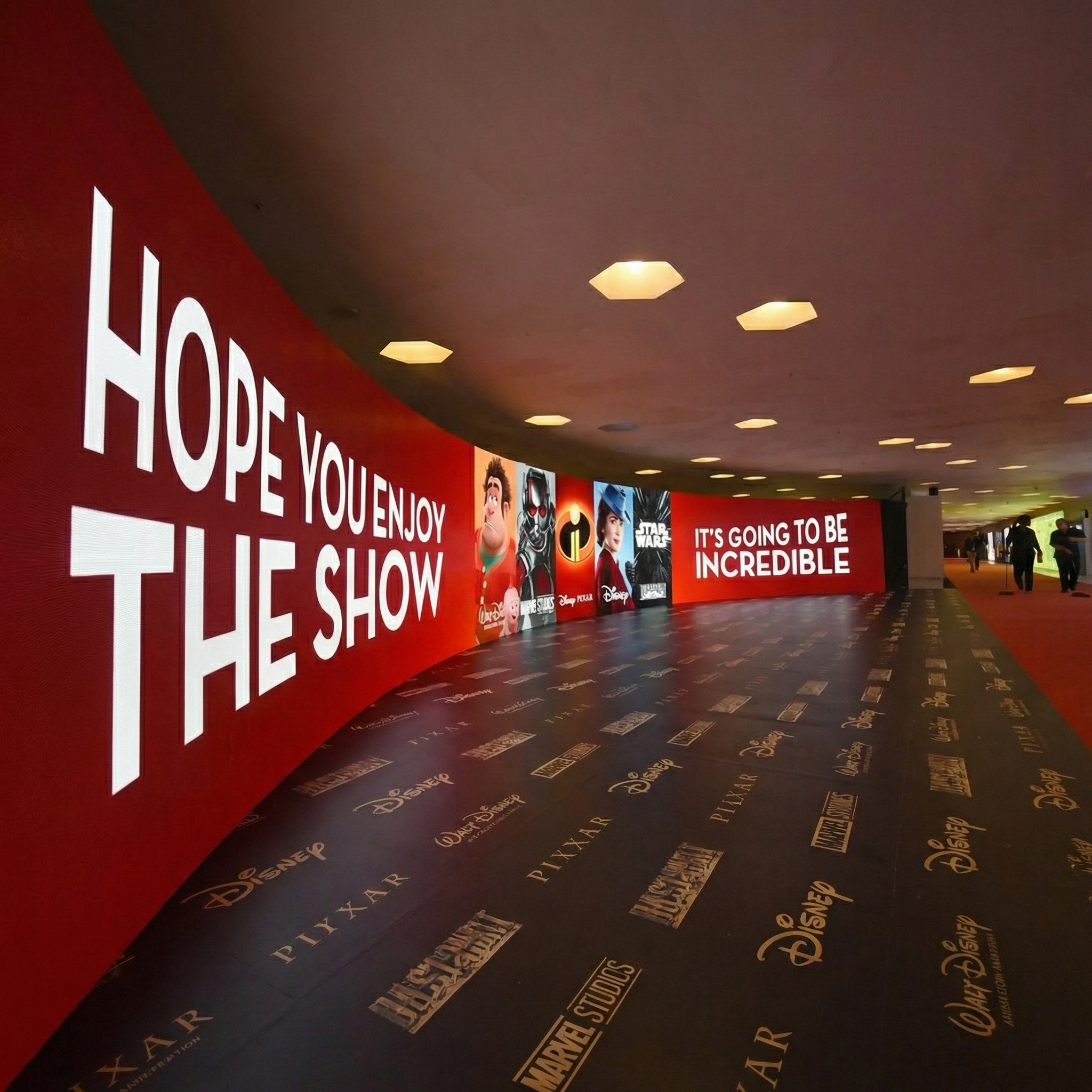

• Clad columns and pillars — closed circles in shopping centres, lobbies and showrooms.

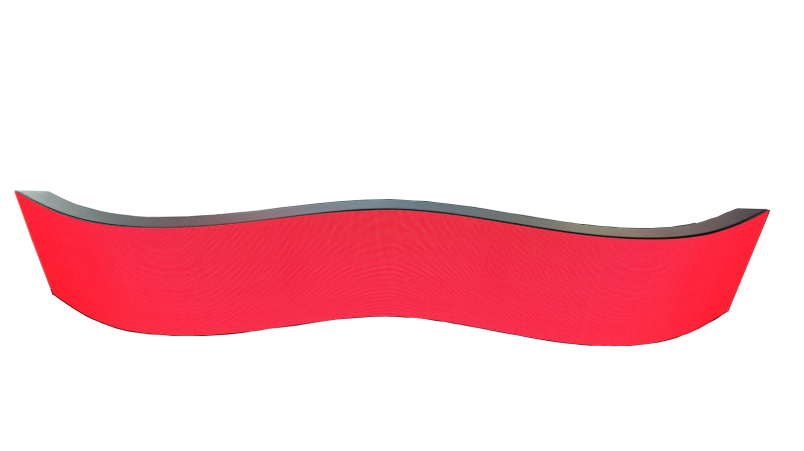

• Scenographic arches and waves — indoor sets, museums, exhibition stands.
• Furniture and fit-out — counters, reception desks, product podiums.
• Retail and brand corners — curved surfaces within public reach, where the GOB resin protects the LED.
• Indoor events — demountable structures and non-flat shapes.

• Bend radius — validate the curve on a mock-up before manufacturing: flexible accepts a lot, but not everything, and joint positions depend on it.
• Impact resistance — the GOB resin is designed for an audience within reach; that is the argument to lead with against a bare SMD module.
• Ingress protection — IP43: indoor only, dust and light splashes, never outdoors.
• Viewing distance — comfortable from 2.5 m; closer than that, move to a finer pitch in the range.
• Measurement — on a curved shape, price the developed length rather than the projected area: it is the most common measurement error.
